| Model | BPA-QK10M | BPA-KK5M | BPA-EK3M | BPA-CK30 | |
| Sensing type | Through-beam | Retro-Reflection | Retro-Reflection (with polarizing filter) |
Diffuse Reflection | |
| Sensing Range | 10M | 5M | 3M | 300mm | |
| Sensin target | Opaque materials of Min.Φ16mm |
Opaque materials of Min.Φ60mm | Transparent, Translucent, Opaque materials |
||
| Hysteresis | ----------------- | Max.20% at rated setting distance |
|||
| Response time | Max.20ms | ||||
| Power supply | 24 - 240 VAC ± 10 % 50/60Hz , 24 - 240 VDC + 10% (Ripple P-P:Max.10%) | ||||
| Power consumption | Max.4VA | ||||
| Light source | Infrared LED(modulated) | Red LED (Modulated :660nm) |
Infrared LED (modulated) |
||

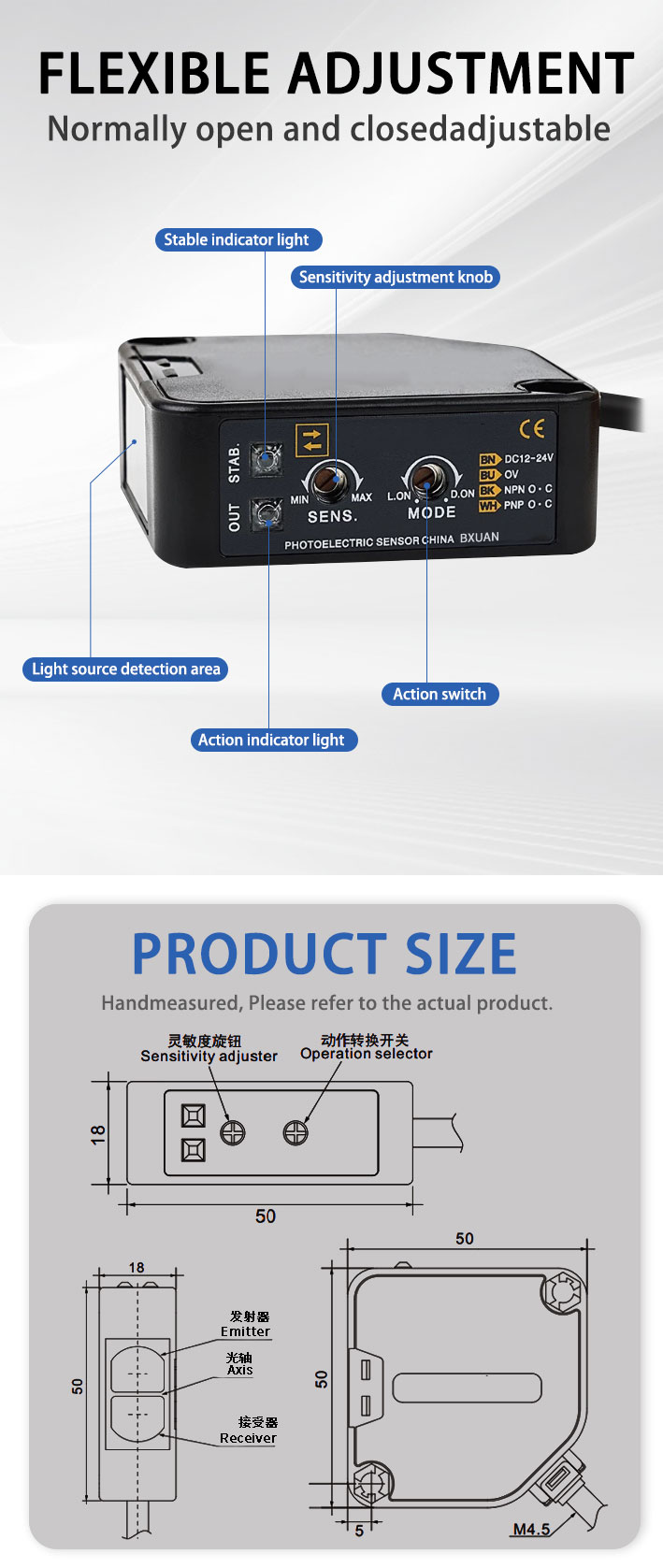

| Sensitivity adjustment | -------- | Adjuster | |||
| Operation mode | Light ON or Dark ON mode selectable by switch | ||||

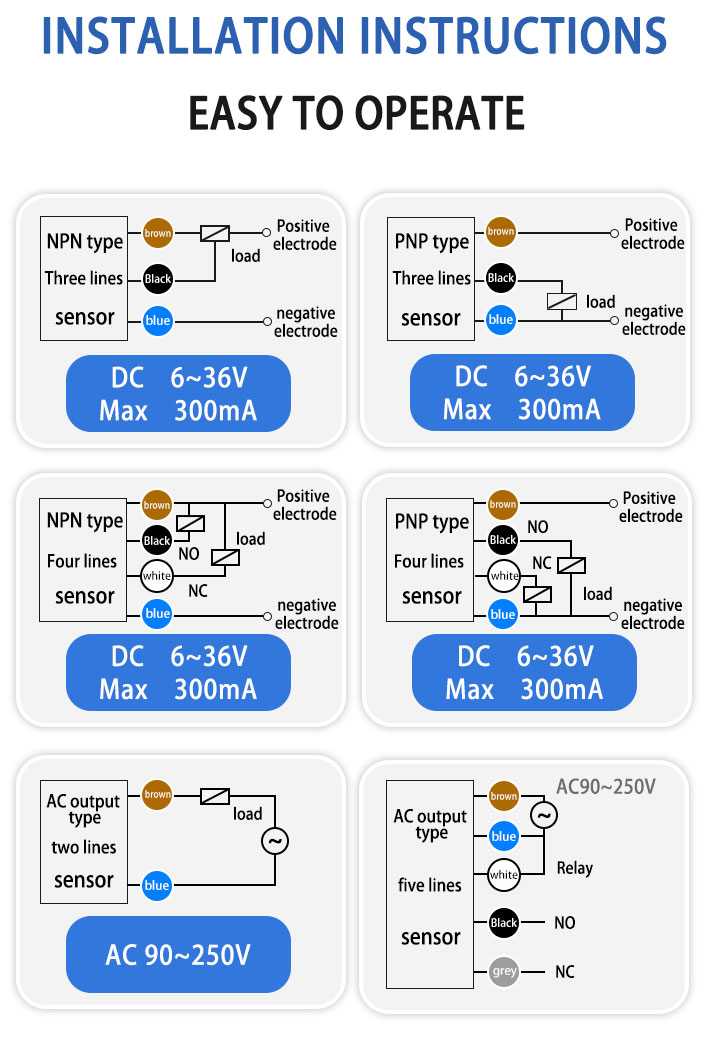

| Control output | Relay contact output(Contact capacity :30VDC 3A resistive load, 250VAC 3A resistive load, Relay contact composition :1c) |
||||
| Relay life cycle | Mechanically :Min.50,000,000, Electrically :Min. 100,000 | ||||
| Light receiving element | Built-in IC type photo diode | ||||
| Indicator | Operation indicator :Orange, Stable indicator :Green (The orange lamp on Emitter of transmitted beam type is for power indication) |
||||
| Connection | Outgoing cable | ||||
| Insulation resistance | Min.20MΩ (at 500VDC mega ) | ||||
| Noise strength | ±1,000V the square wave noise (pulse width:1㎲)by the noise simulator | ||||
| Dielectric strength | 1000VAC 50/60Hz for 1minute | ||||
| Vibration | Mechanical | 1.5mm amplitude at frequency of 10 ~ 55Hz in each of X, Y,2 directions for 2 hours | |||
| Malfunction | 1.5mm amplitude at frequency of 10~ 55Hz in each of X, Y,2 directions for 10 minutes | ||||
| Shock | Mechanical | 500 m/s2(50G)in X,Y,Z directions for 3 times | |||
| Malfunction | 100 m/s2(10G)in X,Y,Z directions for 3 times | ||||
| Ambient illumination | Sunlight :Max.11,000lx , Incandescent lamp:Max.3,000lx | ||||
| Ambient temperature | -20~+65℃ C27(at non-freezing status),Storage:-25~+70℃ | ||||
| Ambient humidity | 35~85%RH, Storage:35~85%RH | ||||
| Material | Case:ABS,Lens cover:Acrylic,Lens :Acrylic | ||||
| Protection | IP50(IEC standard) | ||||
| Cable | Φ6.0mm, 5P, Length :2m | ||||
| Accessory | Individual | -------- | Reflector,Adjustment driver | Adjustment driver | |
| Common | Fixing bracket, Bolts, Nuts | ||||
