| Type | MARK SENSOR | LABEL SENSOR | ||
| Model | BPU2-QI0.7/1 | BPU2-QI0.7/2 | BPU2-QI0.7/3 | BPU2-QI0.7 |
| Emitter | White Led | Green Led | Red Led | Infrared Led |
| Operating voltage | 10-30 VDc;Ripple< 20% of peak to peak | |||
| Current consumption | 30 mA max. | |||
| Sensitivity adjuster | 270° Trimmer | |||

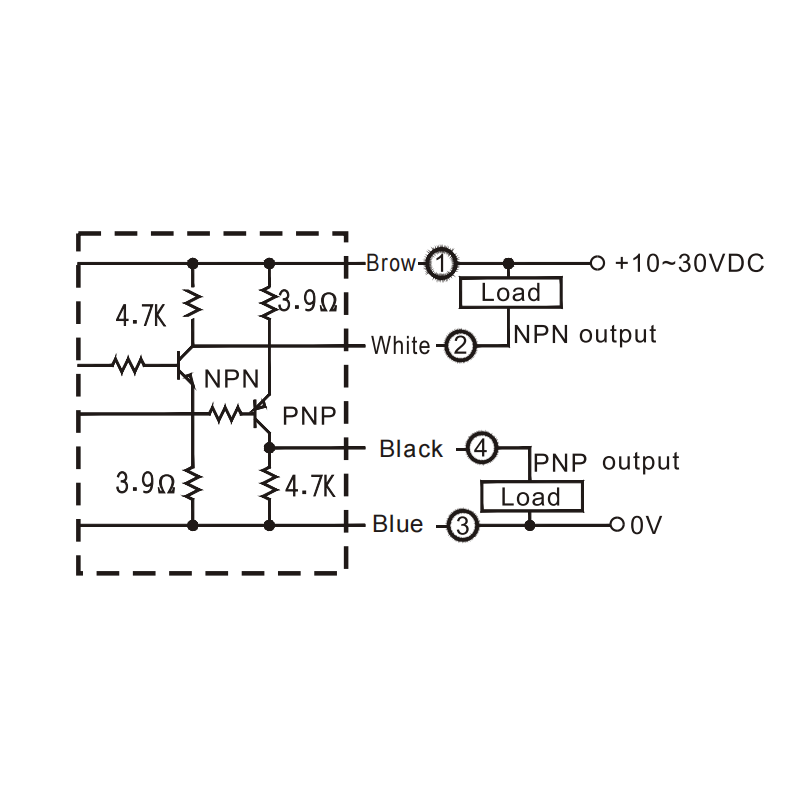

| Output method | NPN & PNP two output | |||
| Output current | 150 mA max. | |||
| Output status | standard : No Type ; BPU2-QJ : NC Type | |||
| Protection circuit | Short Circuit & Polarity Reversed Protection | |||
| Sensible object | Transparent object | Semi-Transparent | ||
| Min.sensible object | 2.0 φ | |||
| Response frequence | 1 K Hz | |||
| lllumination | Lamplight <5000 Lux;sunlight<10,000 LUX | |||
| Connection method | 4φ x 2m | |||
| Housing material | Intensive ABS | |||
| Operating temp/hum | -20℃ ~+60℃ ; 35% ~ 85% RH | |||
| Protection circuit | IP65 | |||
