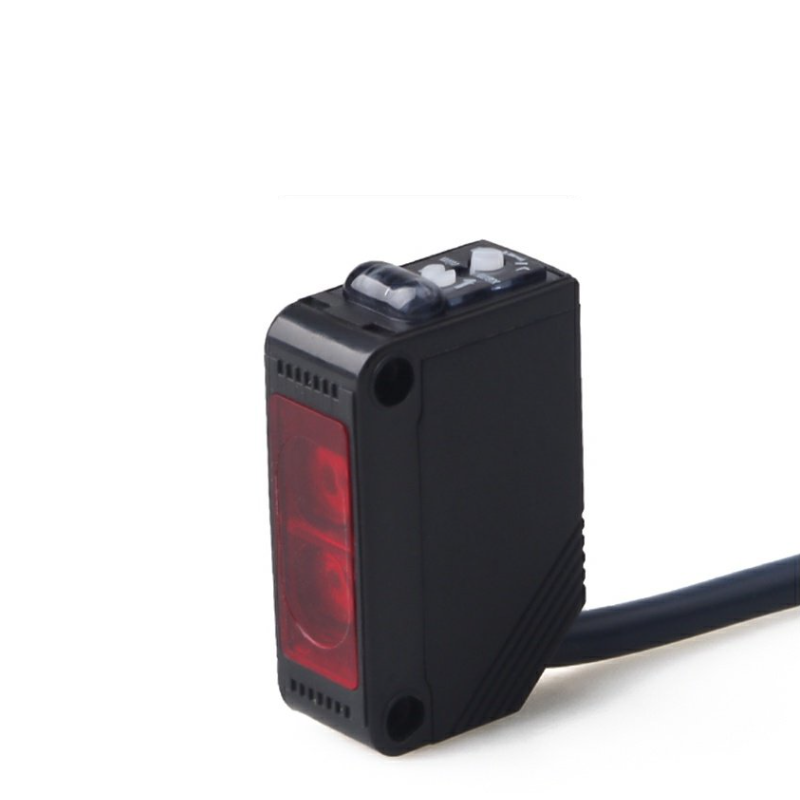

BPZ series Visible red light for easy installation
Small photoelectric sensor, easy to install.
- Overview
- Related Products
| Sensing method | Through-beam | Retro-reflective | Diffuse-reflective | |
| Model | NPN output | BPZ-RC10M | BPZ-LC5M | BPZ-DC10 |
| PNP output | BPZ-RF10M | BPZ-LF5M | BPZ-DF10 | |
| Sensing distance | 10M | 5M | 10CM | |
| Spot diameter (reference value) | -------- | (2.5 dia. and sensing distance of 90 mm) | ||
| Standard sensing object | Opaque: 12-mm dia. min. | Opaque: 75-mm dia. min. | -------- | |
| Minimum detectable object (reference value) | -------- | 0.1 mm (copper wire) | ||
| Differential travel | -------- | |||
| Directional angle | Both emitter and receiver: 3 to 15° | 2 to 10° | ||
| Light source (wavelength) | Red LED(660 nm) | |||
| Current consumption | 35 mA max. (Emitter: 15 mA max., Receiver: 20 mA max.) | 30 mA max. | ||
| Protection circuits | Reversed power supply polarity protection,Output short-circuit protection, and Reversed output polarity protection | Reversed power supply polarity protection, Output short-circuit protection,Mutual interference prevention, and Reversed output polarity protection | ||
| Response time | Operate or reset: 1 ms max | |||
| Degree of protection | IEC, IP67 | |||
| Connection method | Pre-wired cable (standard length: 2 m and 0.5 m) | |||
| Material | Case | PBT (polybutylene terephthalate) | ||
| Lens | Modified polyarylate | |||
