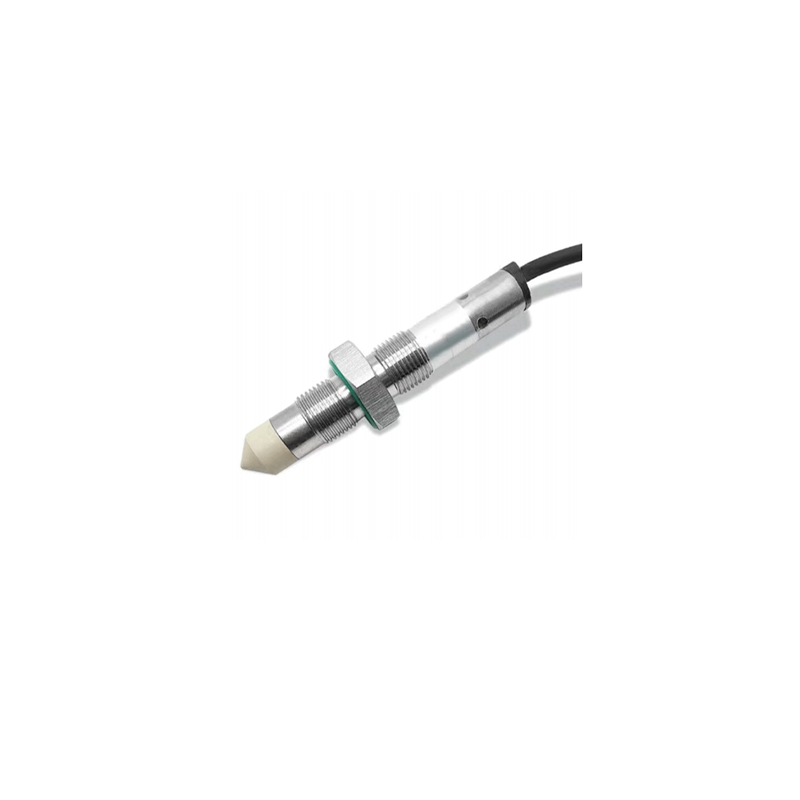

Contact type liquid level capacitive Proximity switch sensor
Detect objects at a distance of 4mm
- Overview
- Related Products
| Sensing range | Contact type | ||
| DC 4- wire | NPN | NO+NC | BC1N12 |
| PNP | NO+NC | BC1P12 | |
| Protection grade | III | ||
| Reverse phase protection | Yes | ||
| Output function | Normallyopen;Normallyclosed | ||
| Voltage drop [v] | < 25 | ||
| Current load [mA] | 100 | ||
| Short circuit protection | pulse | ||
| Overload protection | Yes | ||
| Switching frequency [HZ] | 50 | ||
| Induction distance | 1...6 | ||
| （mm） | |||
| ctualinductiondistance[mm | 4 | ||
| Correetioncoefficient | Water=1/Glass about 0.6/Ceramic about 0.5/PVC about 0.4 | ||
| Hysteresis | 1~5 | ||
| switchpointoffset | -20~20 | ||
| envimt temperature | -25~70 | ||
| Enclosureprotectionclass | IP 65 | ||
| installation | flush-mounting | ||
| The shell material | Stainless steel/nylon | ||
| The weight ofthe | 0.048 | ||
| Switchstatusdisplay | red | ||
| Short-time current rating of switching output [mA] | 1500; (20 ms / 0,5 Hz) | ||
| Switching frequency AC [Hz] | 25 | ||
| Switching frequency DC [Hz] | 40 | ||
| Short-circuit proof | no | ||
| Overload protection | no | ||
| Sensing range adjustable | yes | ||
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 | ||
| Hysteresis [% of Sr] | 1...15 | ||
| Switch-point drift | -15...15 | ||
| Ambient temperature | -25...70 | ||
| Protection | IP 65 | ||
| Increased immunity | yes | ||
| Housing | Threaded type | ||
| Materia | housing: stainless steel | ||
