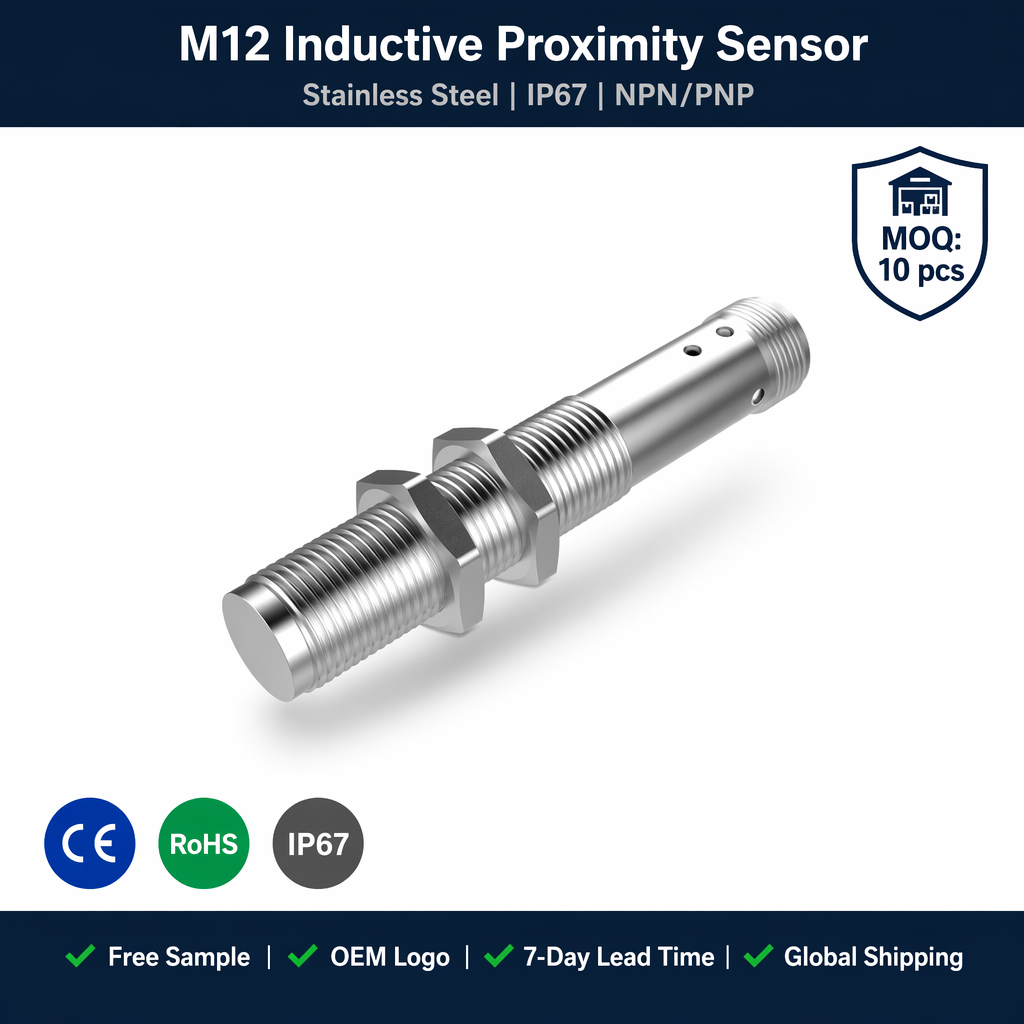

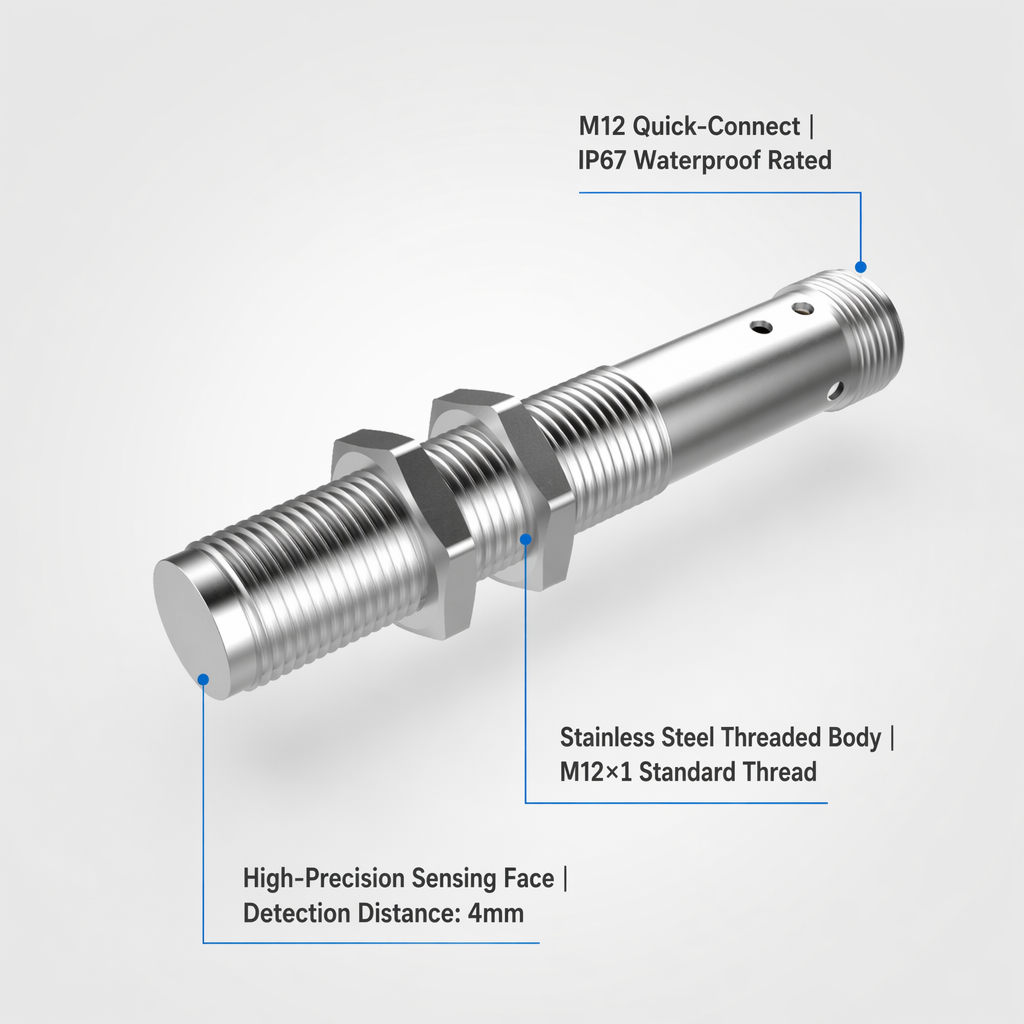

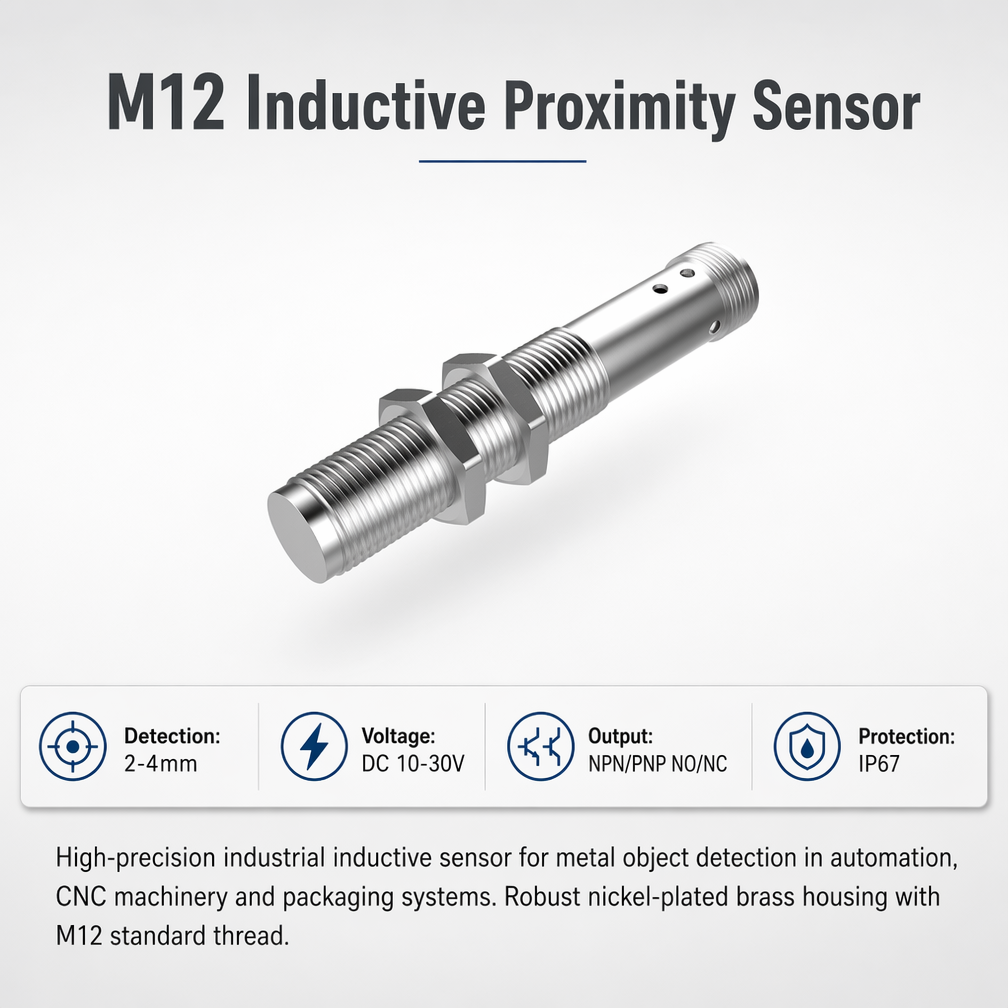

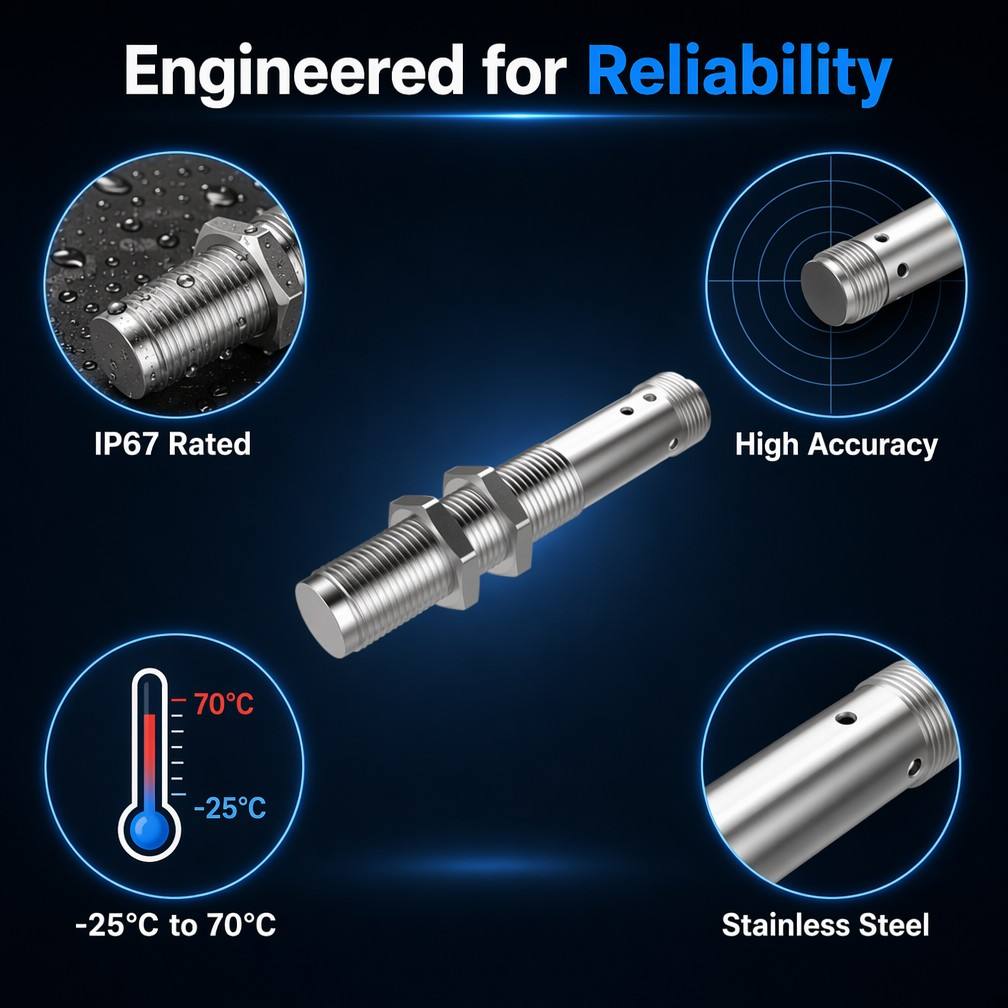

M12 Allmetallserie Flush Induktiv Näherungssensor
Induktionssensor, Metallobjekte erkennen, Detektionsdistanz von 2 mm
- Übersicht
- Verwandte Produkte

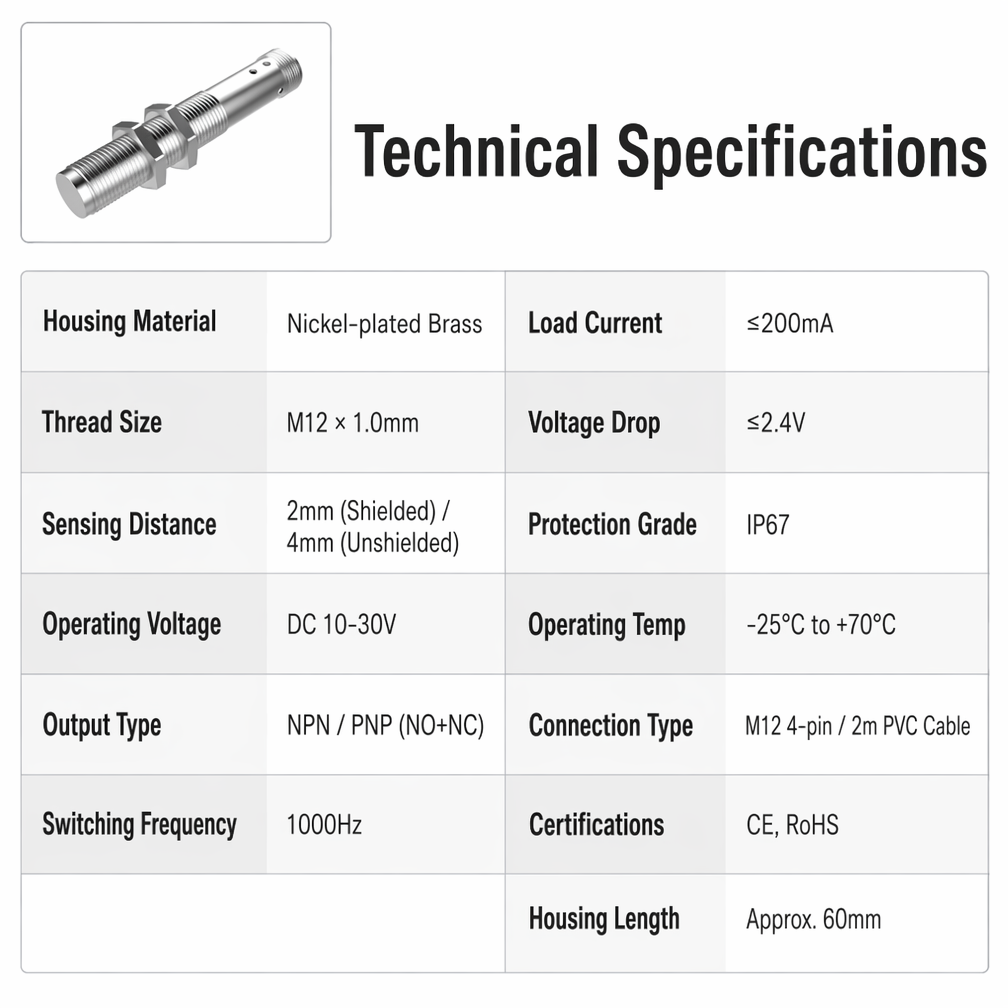

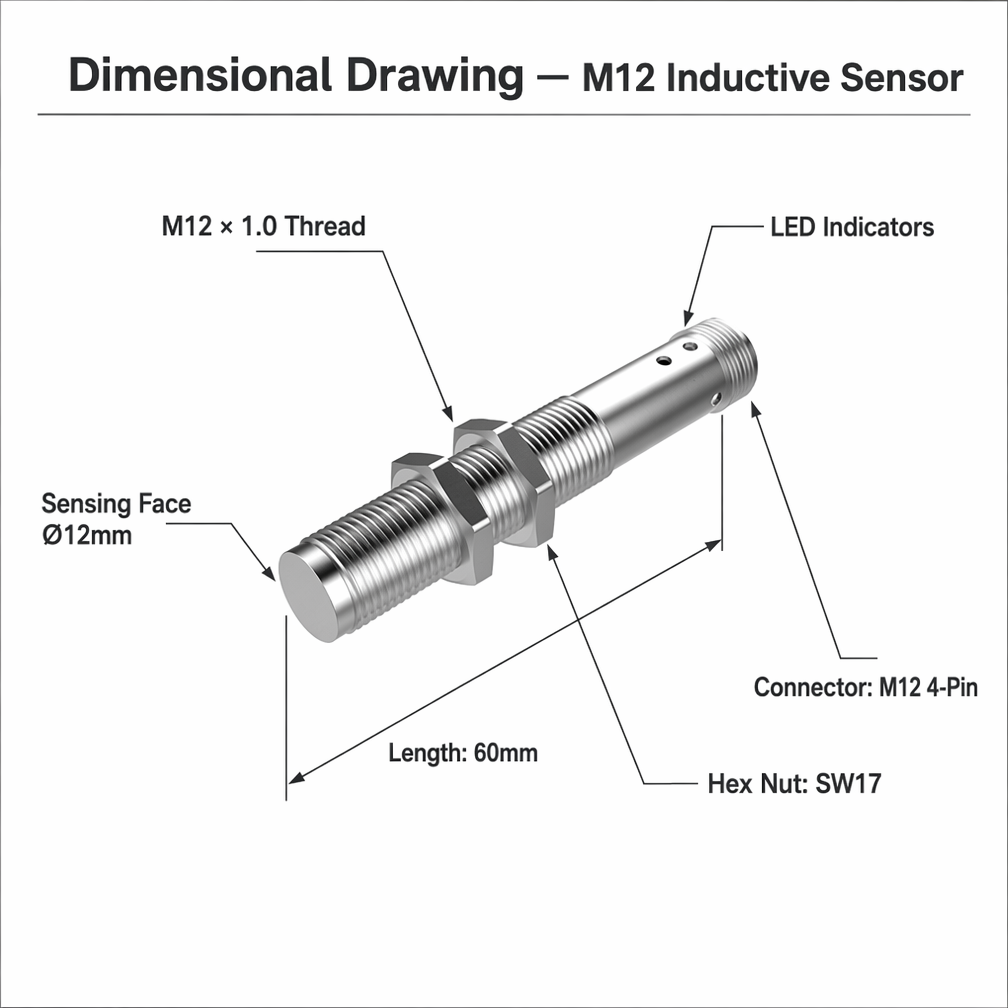

profil-Daten | M12*1 mm | ||
Montageart | Mit einem Schlauch | ||
Erkennungsdistanz | 2 mm±10% | ||
Zuverlässige Detektionsdistanz | 0-1,6 mm | ||

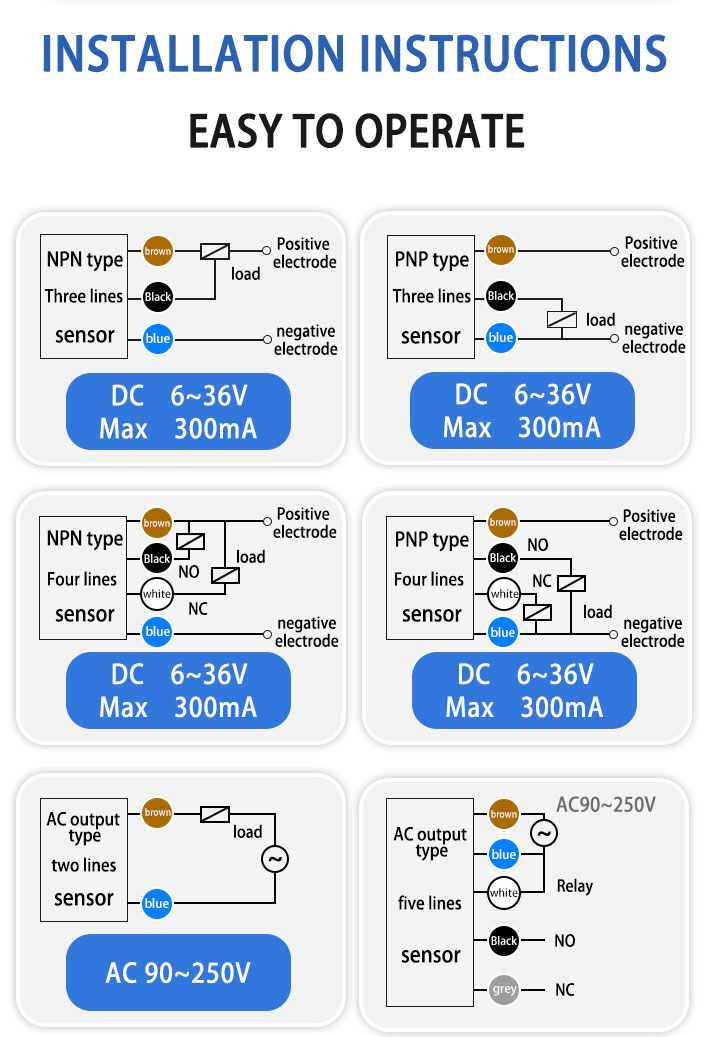

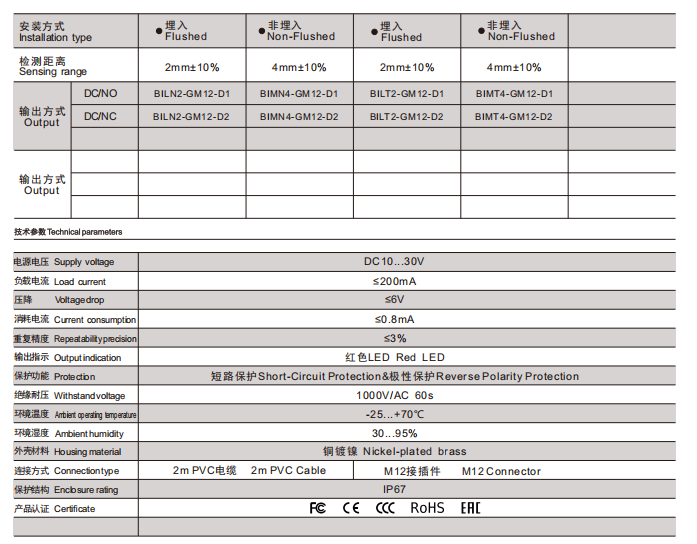

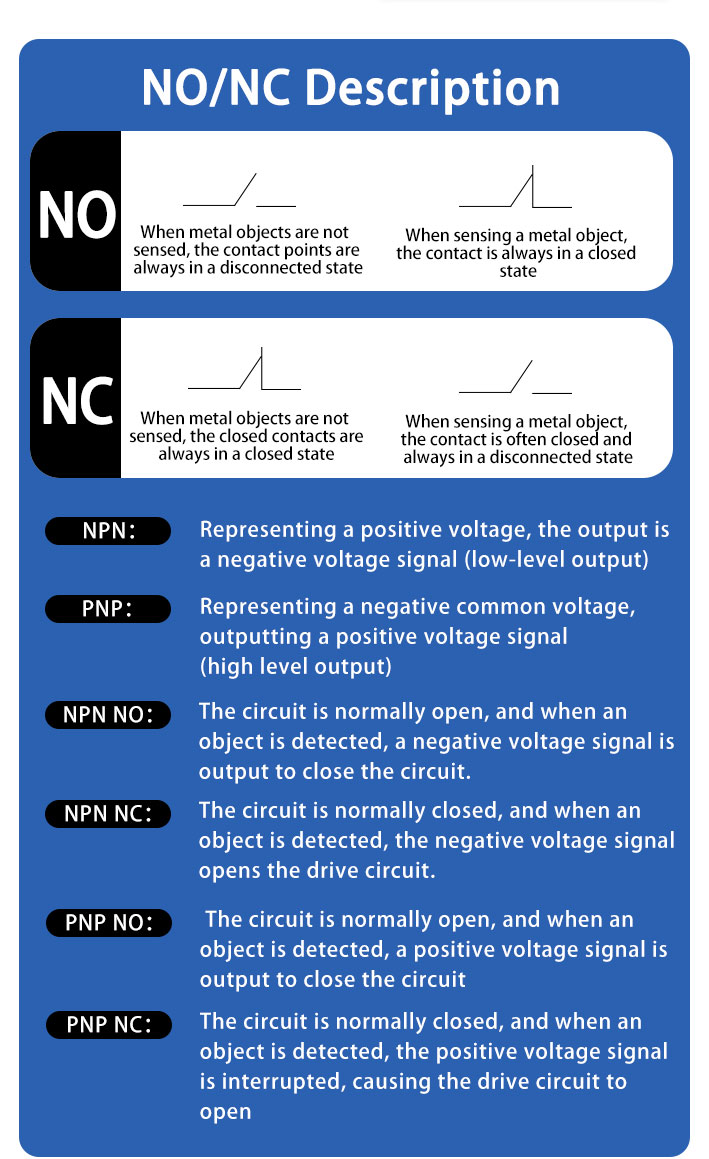

DC 3-Draht / DC 4-Draht | Npn | Nein | BILT2-GM12-N1 |
NC | BILT2-GM12-N2 | ||
PNP | Nein | BILT2-GM12-P1 | |
NC | BILT2-GM12-P2 | ||
DC-2-Draht | Nein | BILT2-GM12-D1 | |
NC | BILT2-GM12-D2 | ||
Mit einem Strangverlauf von | Nein | BILT2-GM12-A1 | |
NC | BILT2-GM12-A2 | ||
Versorgungsspannung | DC 3-Draht:dc10-30V | ||
Gleichstrom 2-Draht:dc10-30v | |||
AC 2-Draht:ac20-250v | |||
Spannungsabfall | DC 3-Draht:< 1,5 V | ||
DC 2-Draht:< 6v | |||
Wechselstrom 2-Leiter: < 8 V | |||
laststrom | DC 3-Draht:< 200 ma | ||
DC 2-Draht:< 200 ma | |||
Strom mit zwei Drähten:> 300 ma | |||
Stromverbrauch | Dc 3-Draht:< 10 ma | ||
Dc 2-Draht:< 0,8 ma | |||
Wechselstrom mit zwei Leitern:< 2,5 V | |||
Leckstrom | Dc 3-Draht:<0,01ma | ||
Dc 2-Draht:< 0,8 ma | |||
Wechselstrom mit zwei Leitern:< 2,5 V | |||
Isolierungspannung | Gleichstrom 3-Leiter:1000v/AC 60s | ||
Gleichstrom 2-Leiter:1000v/AC 60s | |||
Wechselstrom 2-Draht: 2000v/WK 60s | |||
schaltfrequenz | DC 3-Draht:1000 Hz | ||
Gleichstrom 2-Draht: 800 Hz | |||
AC 2-Draht:25hz | |||
Kurzschlussschutz/Rückschaltschutz | Dc 3-draht: haben/haben | ||
Dc 2-draht: haben/haben | |||
Mit einem Stromverbrauch von mehr als 20 Watt | |||
licht für die Anzeige | Rot geleitet | ||
Schutzgrad | IP67 | ||
Gehäusematerial | edelstahl | ||
Prüfoberflächenmaterial | edelstahl | ||
Verbindungsmodus | M12-Anschluss |
