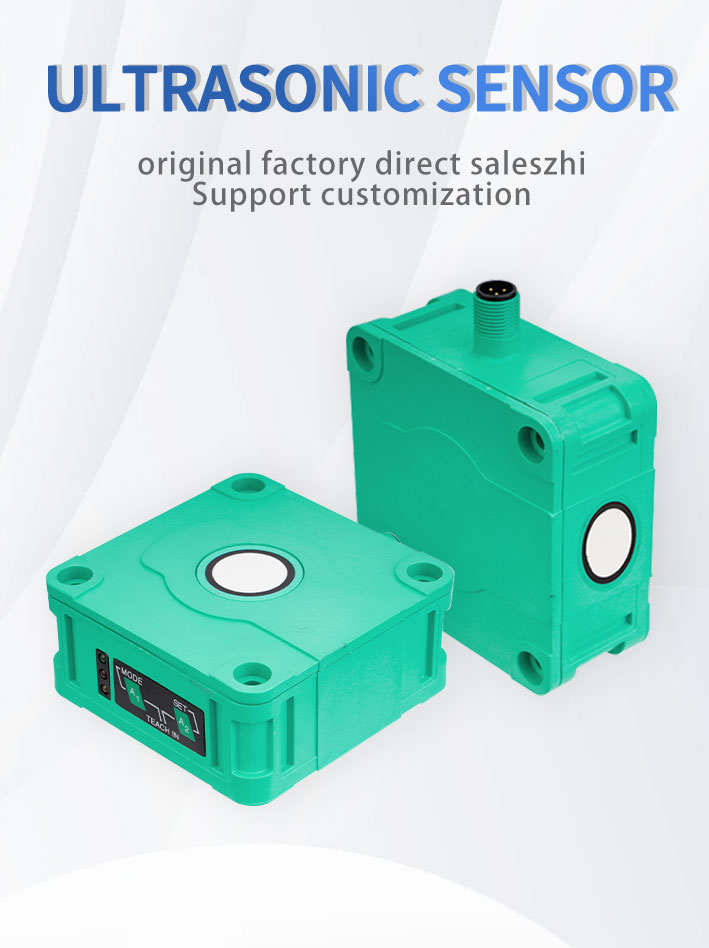

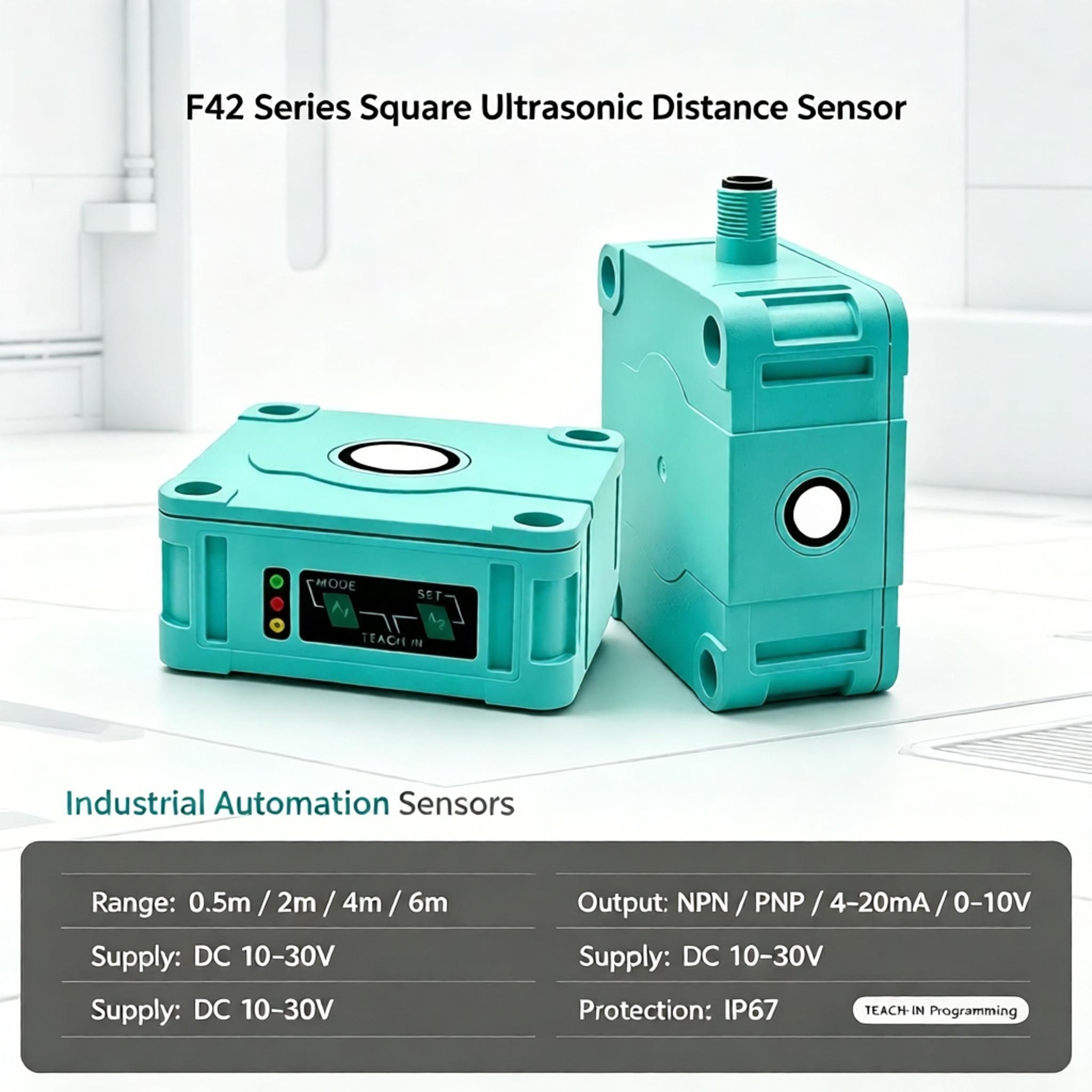

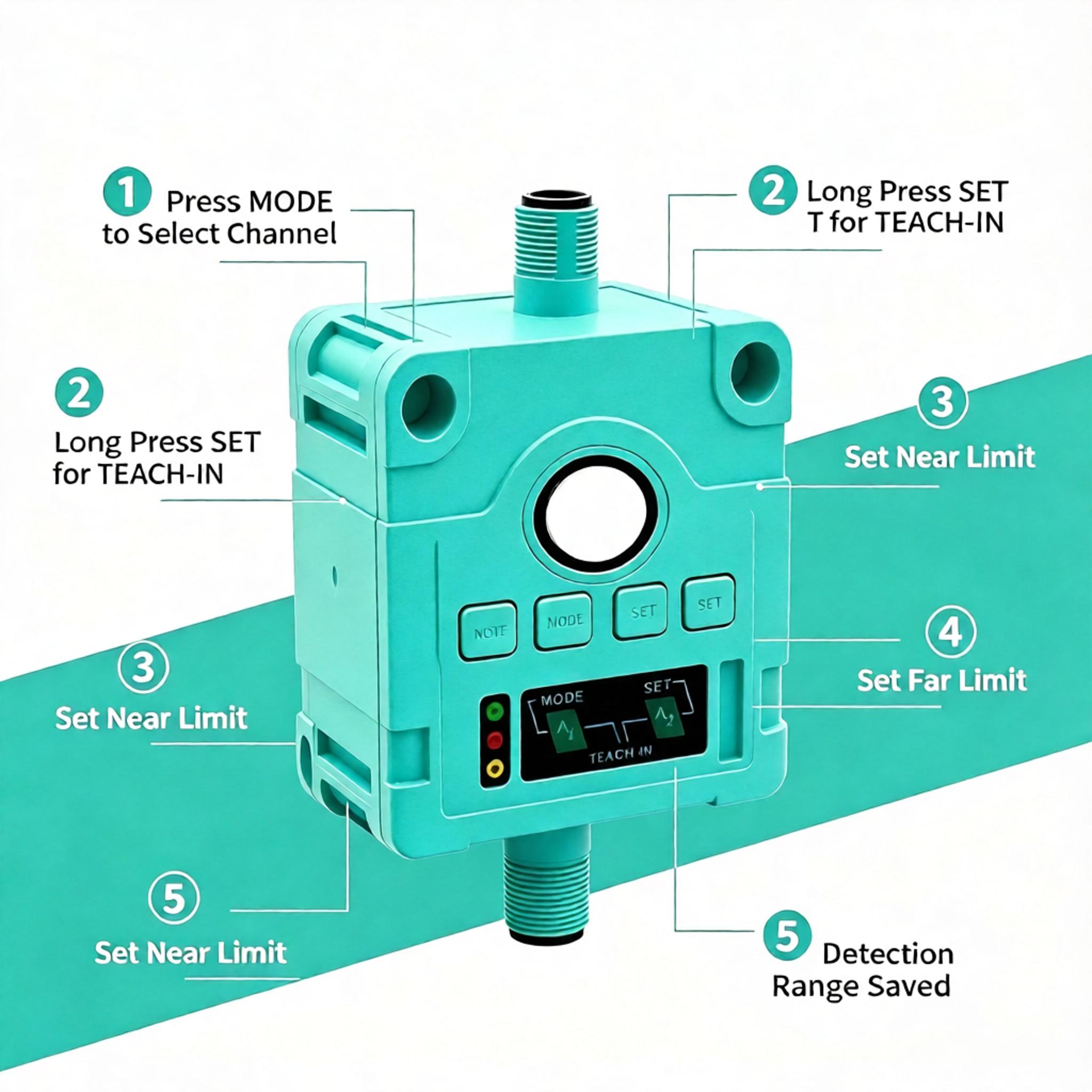

F42 Relay output ultrasonic sensor
Garbage bin ultrasonic sensor, an ultrasonic sensor for detecting the capacity of garbage bins. Used to detect the filling status of the garbage bin to determine whether it needs to be emptied. Sensors can be installed in trash cans or bins and connected to monitoring systems, which can transmit whether the bin is full (or close to the bin). If the waste container is full, place it on the route to be collected. Garbage bins that are not quickly filled will not be collected along the route.
- Overview
- Related Products

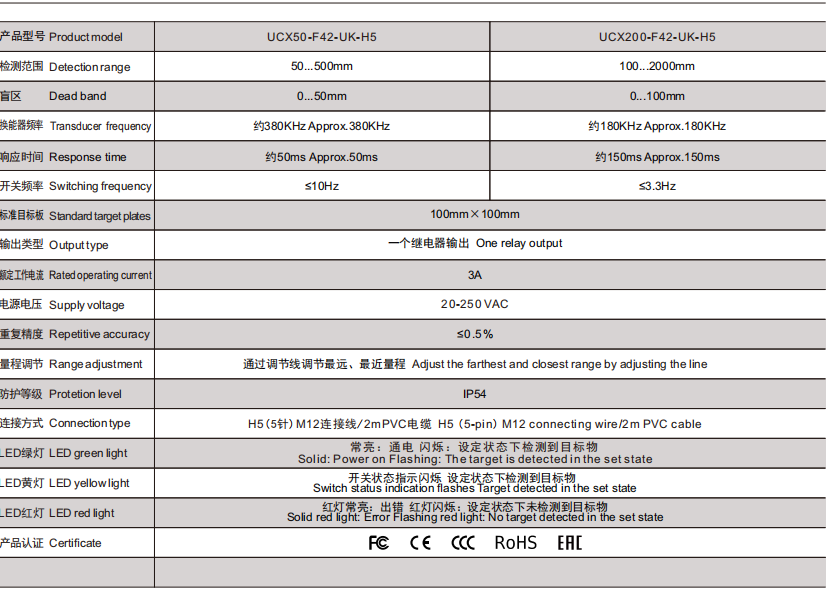

| Product model | UCX50-F42-UK-H5 | UCX200-F42-UK-H5 | UCX400-F42-UK-H5 | ||
| UCX50-F42S-UK-H5 | UCX200-F42S-UK-H5 | ||||
| Detection range | 50..500mm | 80..2000mm | 200...4000mm | ||
| Non-detection zone | 0...50mm | 0...80mm | 0mm ..200mm | ||
| Transducer frequency | About 380KHz | About 180KHz | 85KHZ | ||
| response time | 21ms | About 65ms | About 145ms | ||
| Standard target version | ≤8Hz | ≤ 3Hz | ≤ 1.5Hz | ||
| Standard target version | 100mm*100mm | ||||
| type of output | UK :Relay output | ||||
| Rated working current | 3A | ||||
| accuracy of rated working | ≤ ±0.5% | ||||
| working voltage | 20...VDC...253VAC | ||||

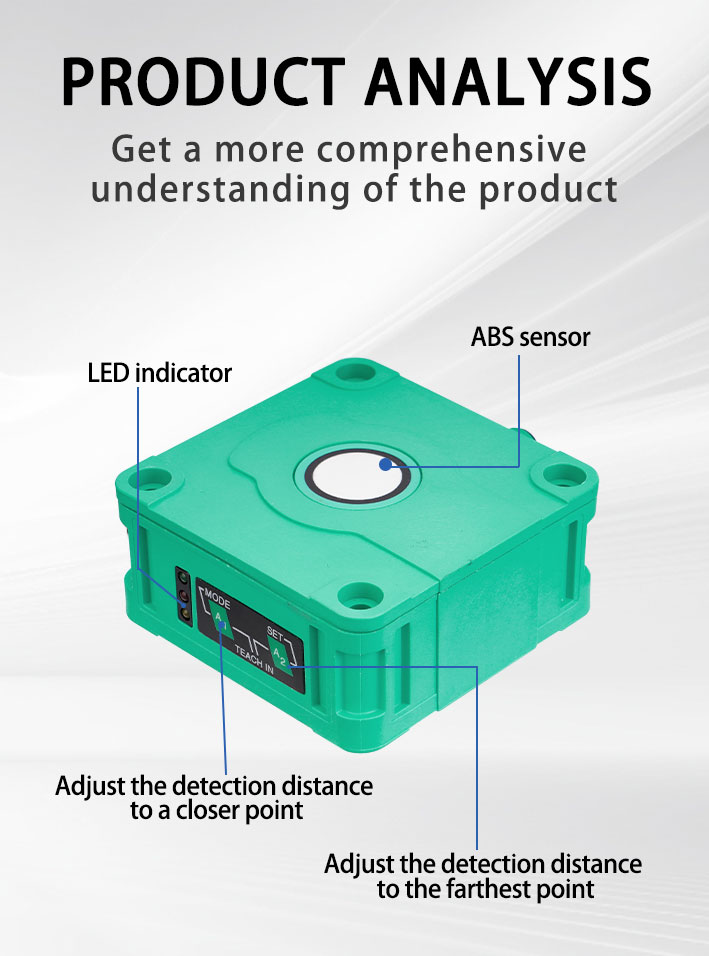

| Range adjustment | Adjust the farthest and nearest range through the adjusting line | ||||
| Degree of protection | IP65 | ||||
| Connection mode | Connector plug M12 x 1 , 5-pin/2m PVC cable | ||||
| LED yellow light | The yellow light of the switch status indicator flashes. The target is detected under the set status | ||||
| LED red light | The red light is always on: error Red light flashing: no target is detected in the set state | ||||
