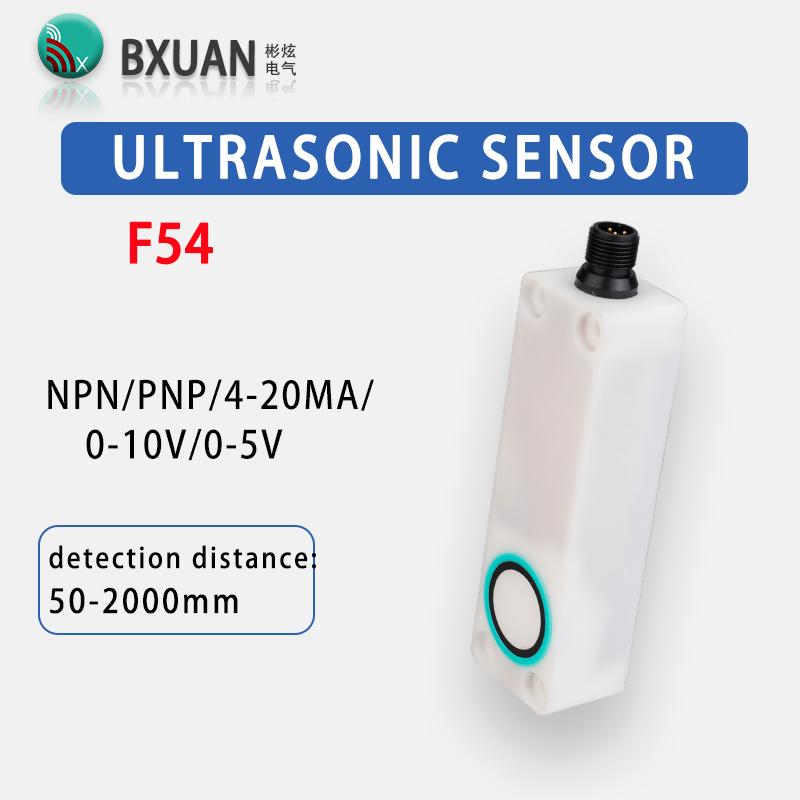

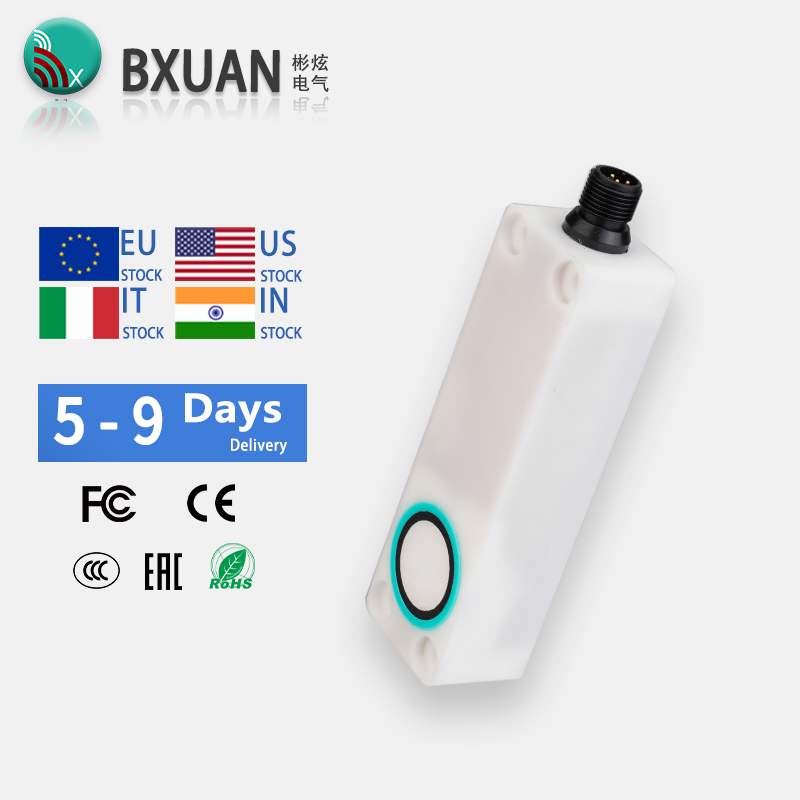

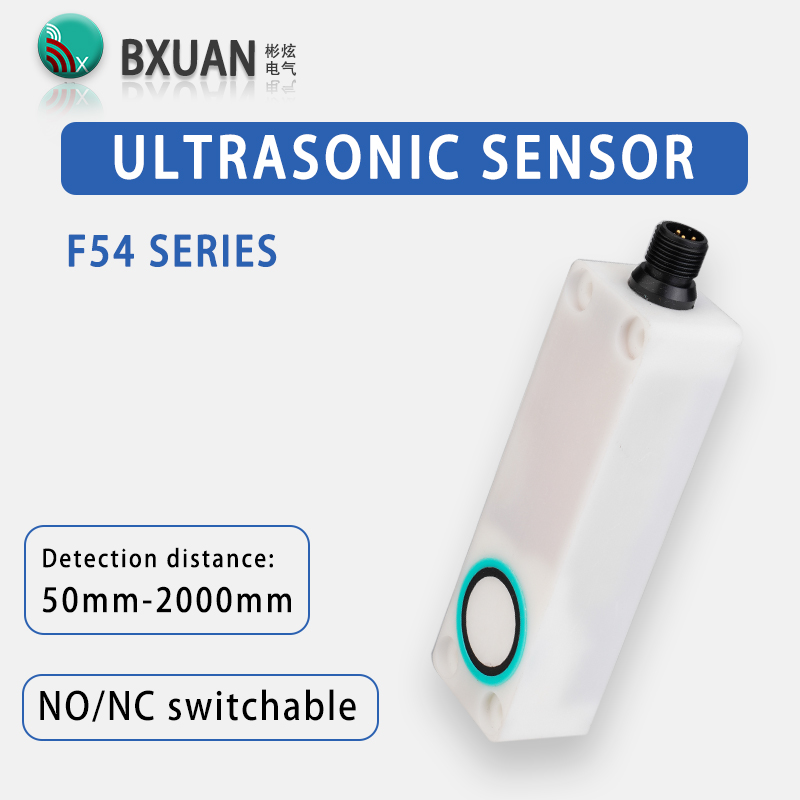

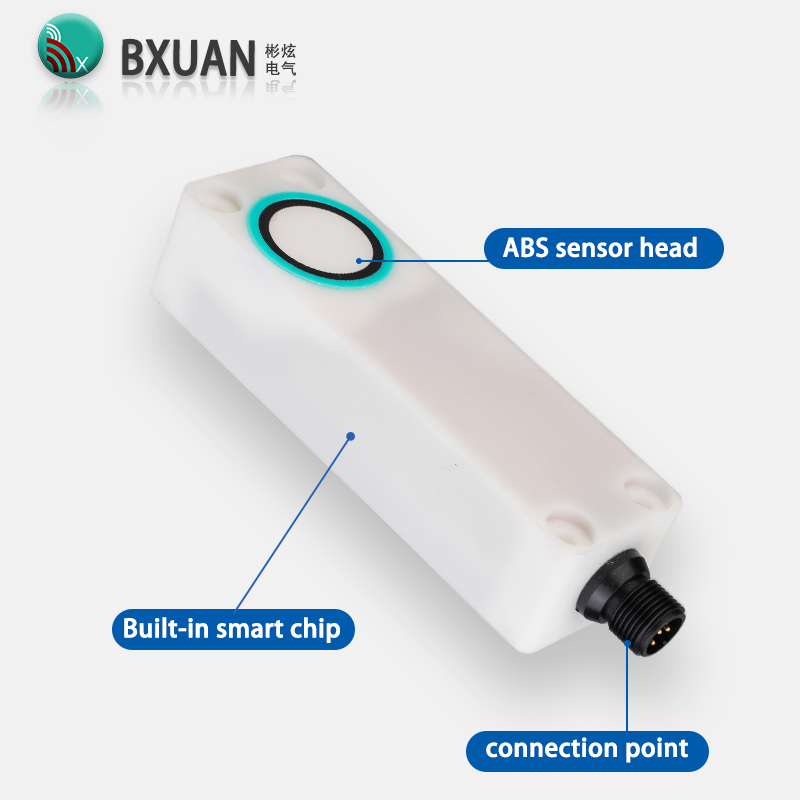

F54 series ultrasonic sensor
Sensors with small size and light weight,
Detect the level inside ultra small containers or measure through narrow openings, with adjustable distance
- Overview
- Related Products
| Product model | UCX50-F54-DI-H5 | UCX200-F54-DI-H5 | |||
| UCX50-F54-DU-H5 | UCX200-F54-DU-H5 | ||||
| Detection range |
50...500mm | 80...2000mm | |||
| Non-detection zone |
0mm ..50mm | 0mm ..80mm | |||
| Transducer frequency |
About 380KHz | About 180KHZ | |||
| response time | About 50ms | About150ms | |||
| Standard target version |
100mm*100mm | ||||
| type of output | DI :4-20mA | ||||
| DU：0-10V | |||||
| working voltage |
DI:10-30V DC ripple 10% DU:15-30V DC ripple 10% | ||||
| Rated working current |
≤ 45mA | ≤ 50mA | |||
| Repetition accuracy of |
±1.5% | ||||
| Range adjustment |
Adjust the farthest and nearest range through the adjusting line | ||||
| Degree of protection |
IP65 | ||||

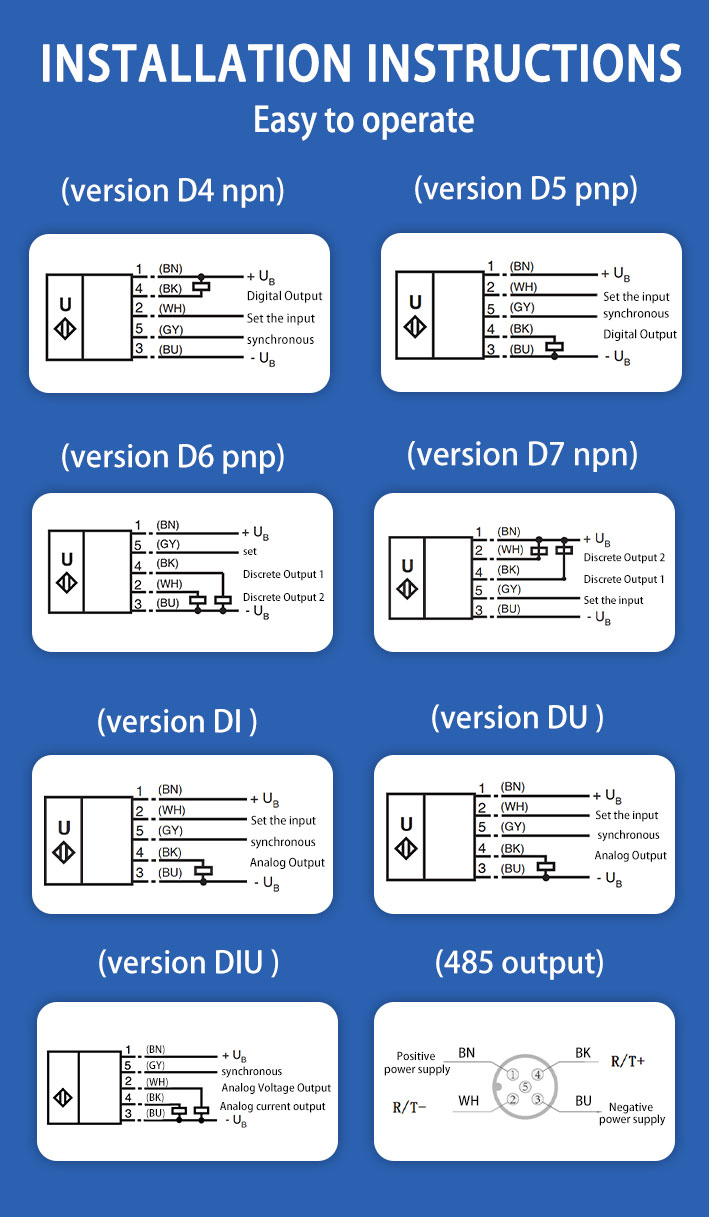

| Connection mode |
Connector plug M12 x 1 , 5-pin/2m PVC cable | ||||
| LED yellow light |
The yellow light of the switch status indicator flashes. The target is detected under the set status |
||||
| LED red light | The red light is always on: error Red light flashing: no target is detected in the set state |
||||
