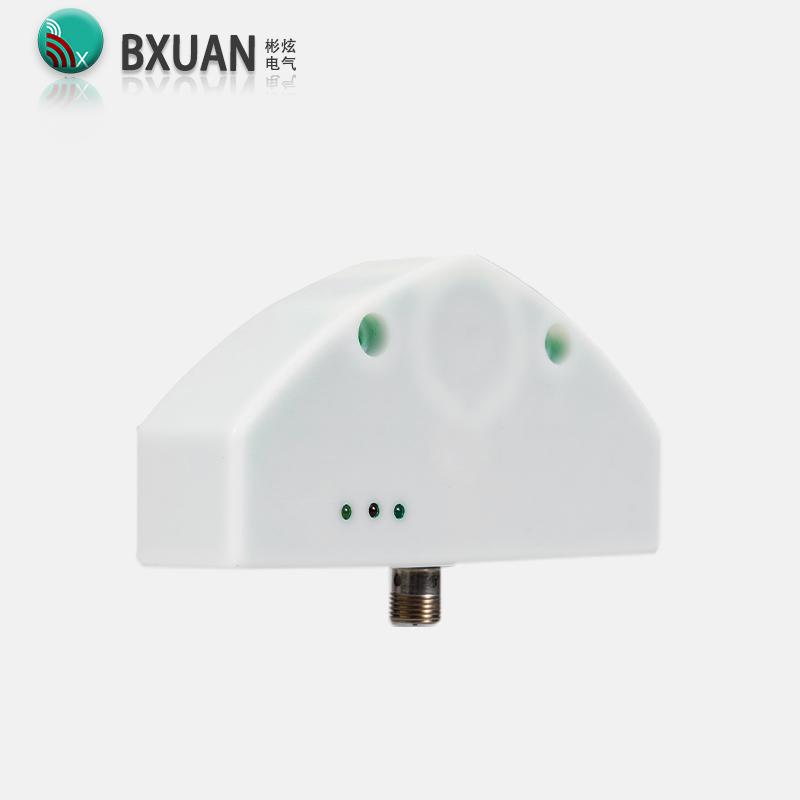

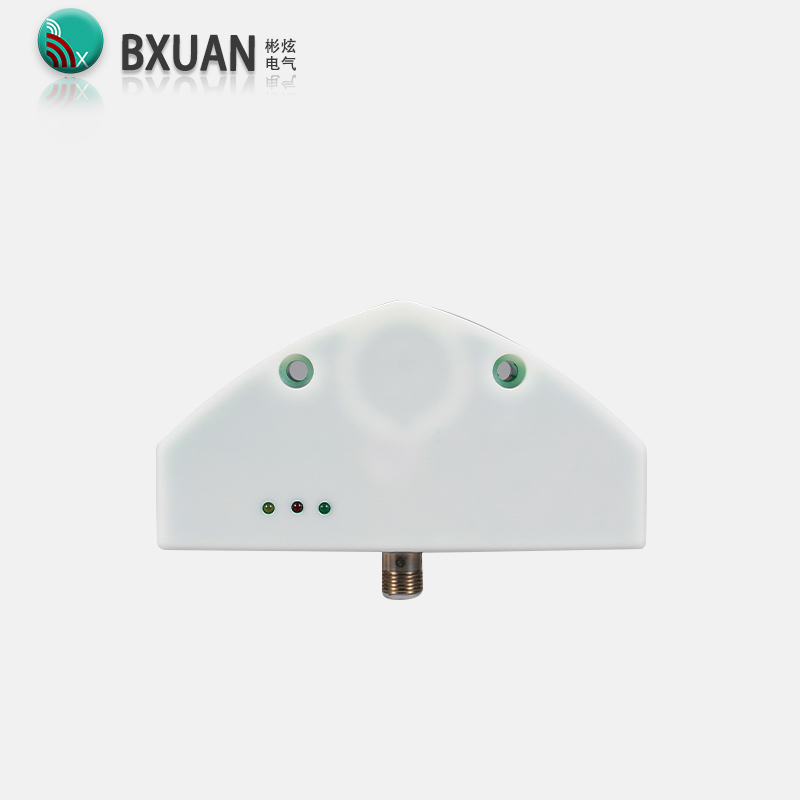

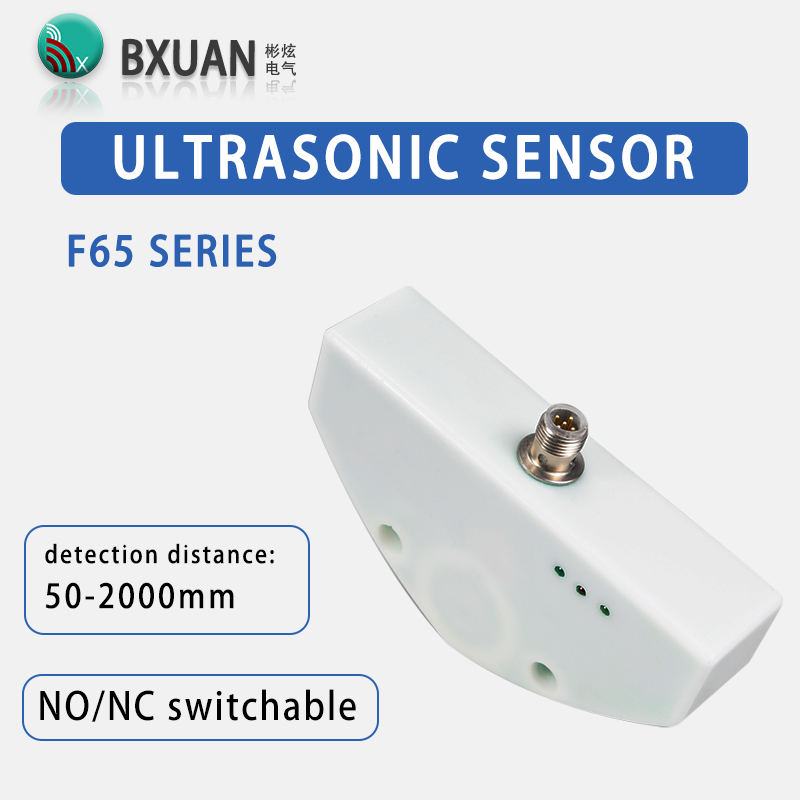

F65 series ultrasonic sensor SN: 2000mm

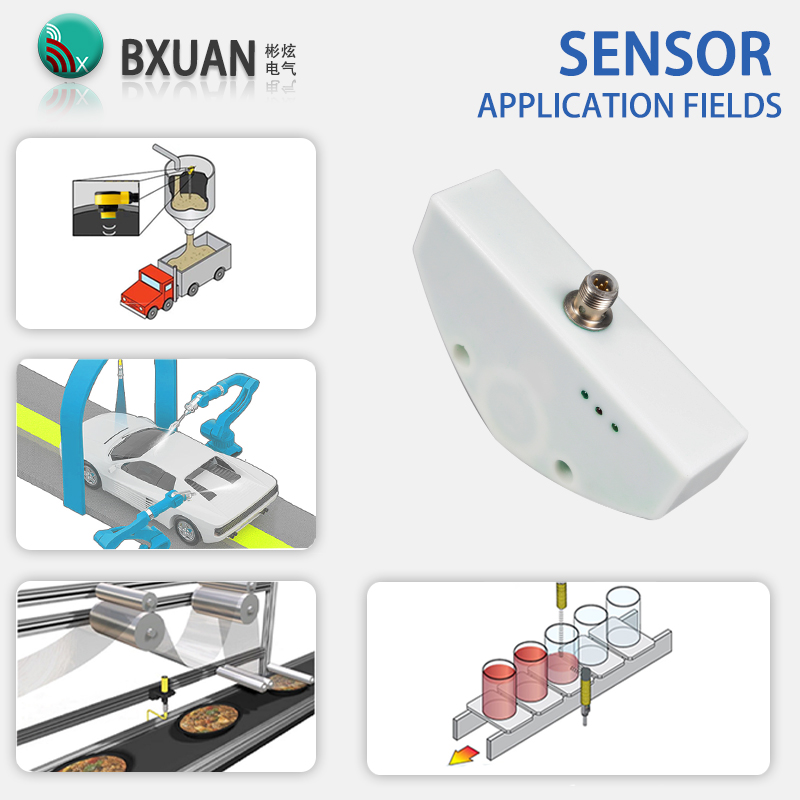

Ultrasonic sensors can be used to detect liquid levels, transparent objects and materials, control tension, and measure distance. They are mainly used in equipment transportation for packaging, bottle making, material handling, coal inspection, plastic processing, and the automotive industry. Ultrasonic sensors can be used for process monitoring to improve product quality, detect defects, determine presence or absence, and other aspects

Overview
Related Products

Product model	UCX50-F65-D4-H5	UCX50-F65-D6-H5	UCX100-F65-D4-H5	UCX100-F65-D6-H5
	UCX50-F65-D5-H5	UCX50-F65-D7-H5	UCX100-F65-D5-H5	UCX100-F65-D7-H5
Detection range	50..500mm		70...1000mm
Dead band	0...50mm		0...70mm
Transducer frequency	Approx.380KHz		Approx.205KHz
Response time	Approx.50ms		Approx.125ms
Switching frequency	≤10Hz		≤3Hz
Output type	D4: NPN NO/NC D5: PNP NO/NC D6: 2×PNP NO/NC D7: 2×NPN NO/NC
Rated operating current	200mA
Supply voltage	10-30VDC ripple 10%
Repetitive accuracy	≤0.1%
Range adjustment	Adjust the farthest and closest range by adjusting the line
Protetion level	IP65

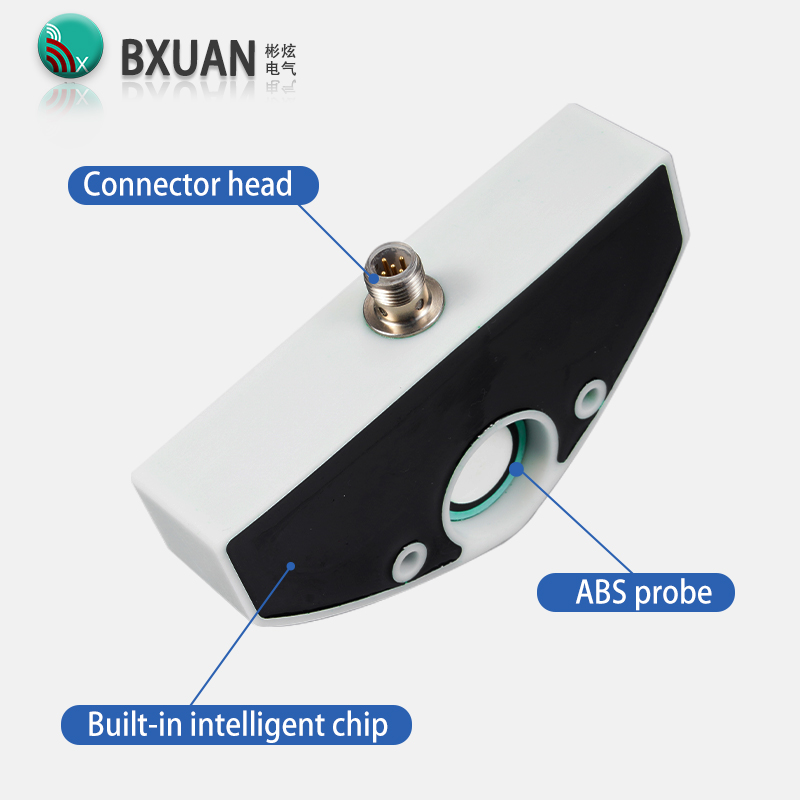

Connection type	H5 (5-pin) M12 connecting wire/2m PVC cable
LED yellow light	The switch status indicator yellow light is flashing, and the target object is detected in the set state
LED red light	Red light always on: error red light flashing: no target object detected in the set state
Certificate	FCC CE CCC ROHS EAC
