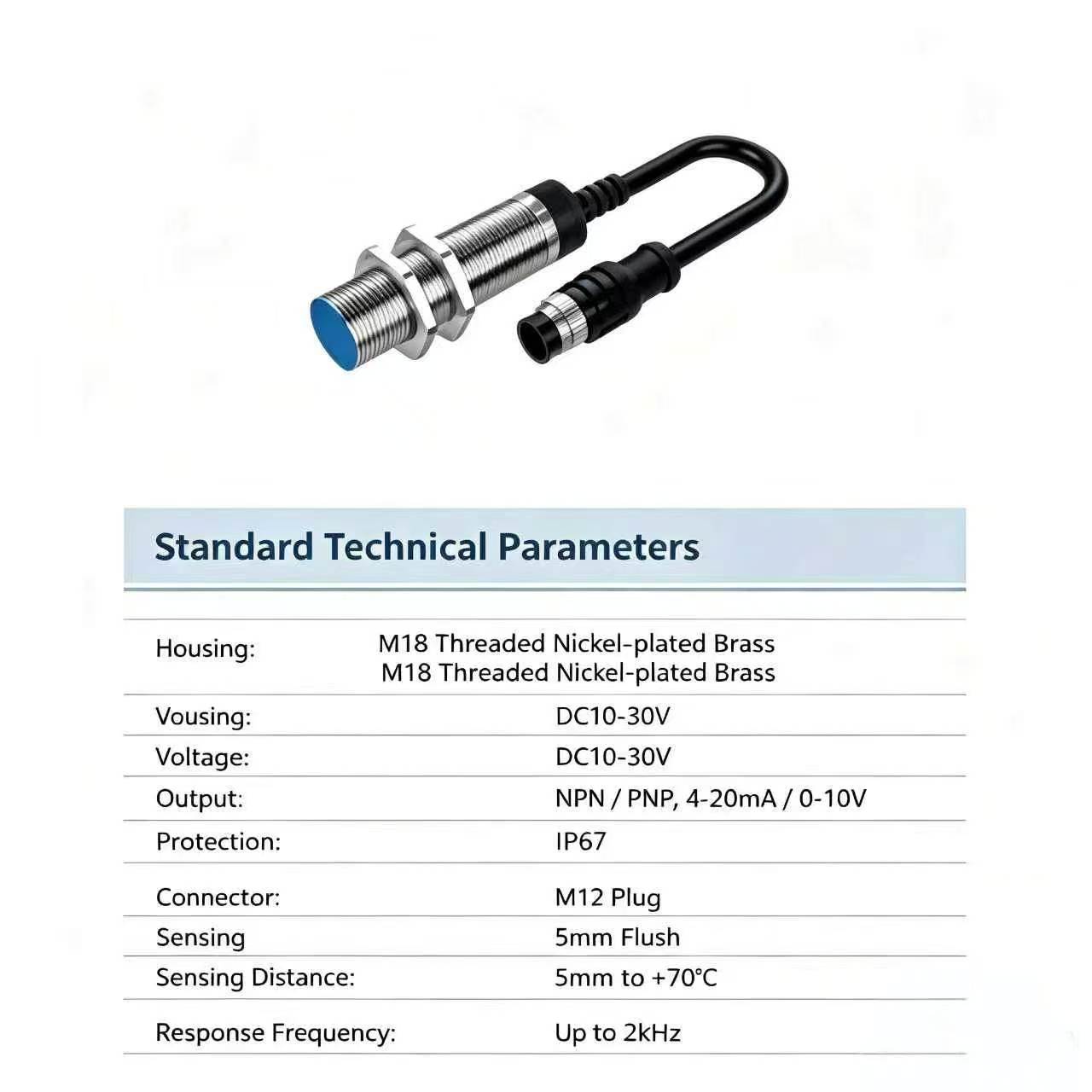

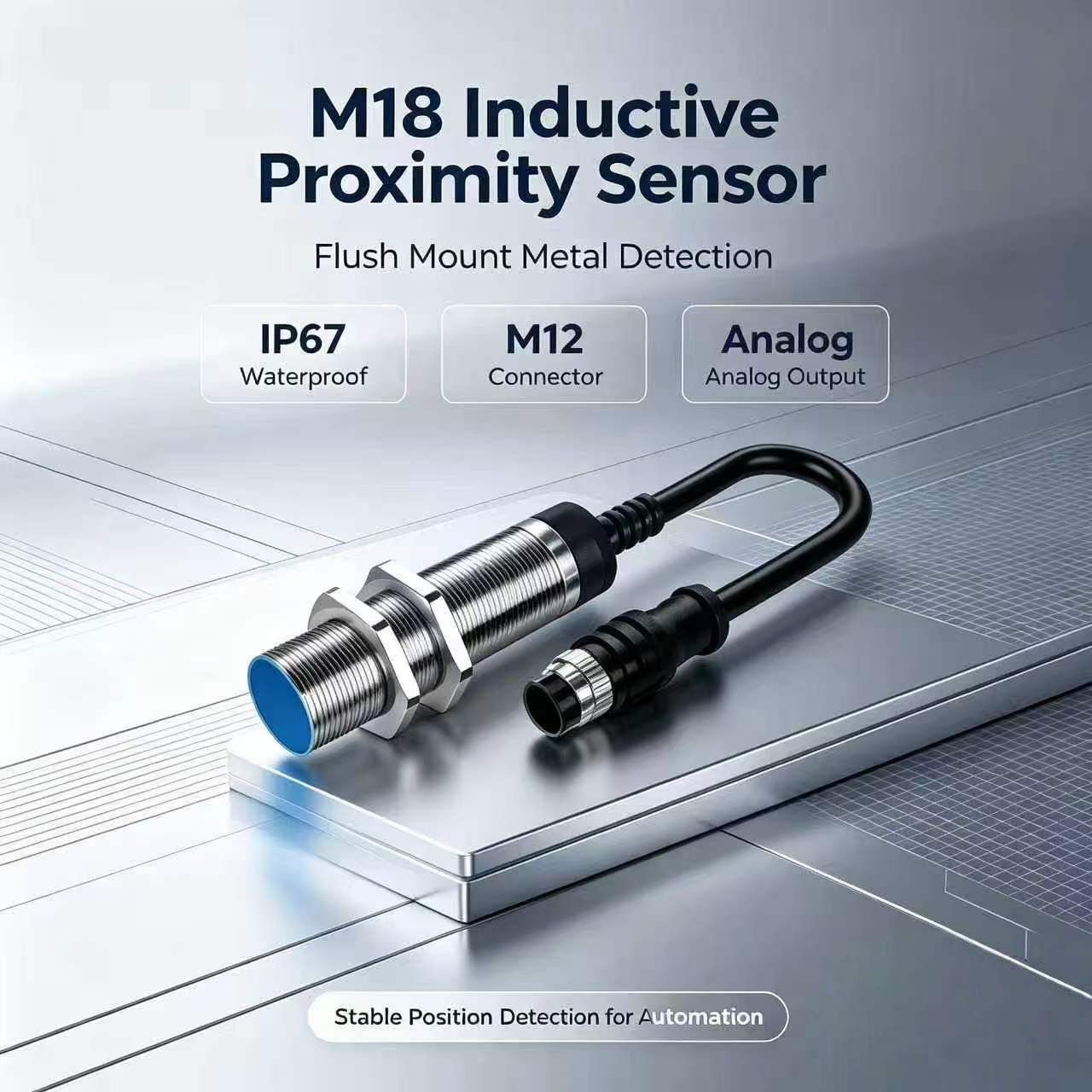

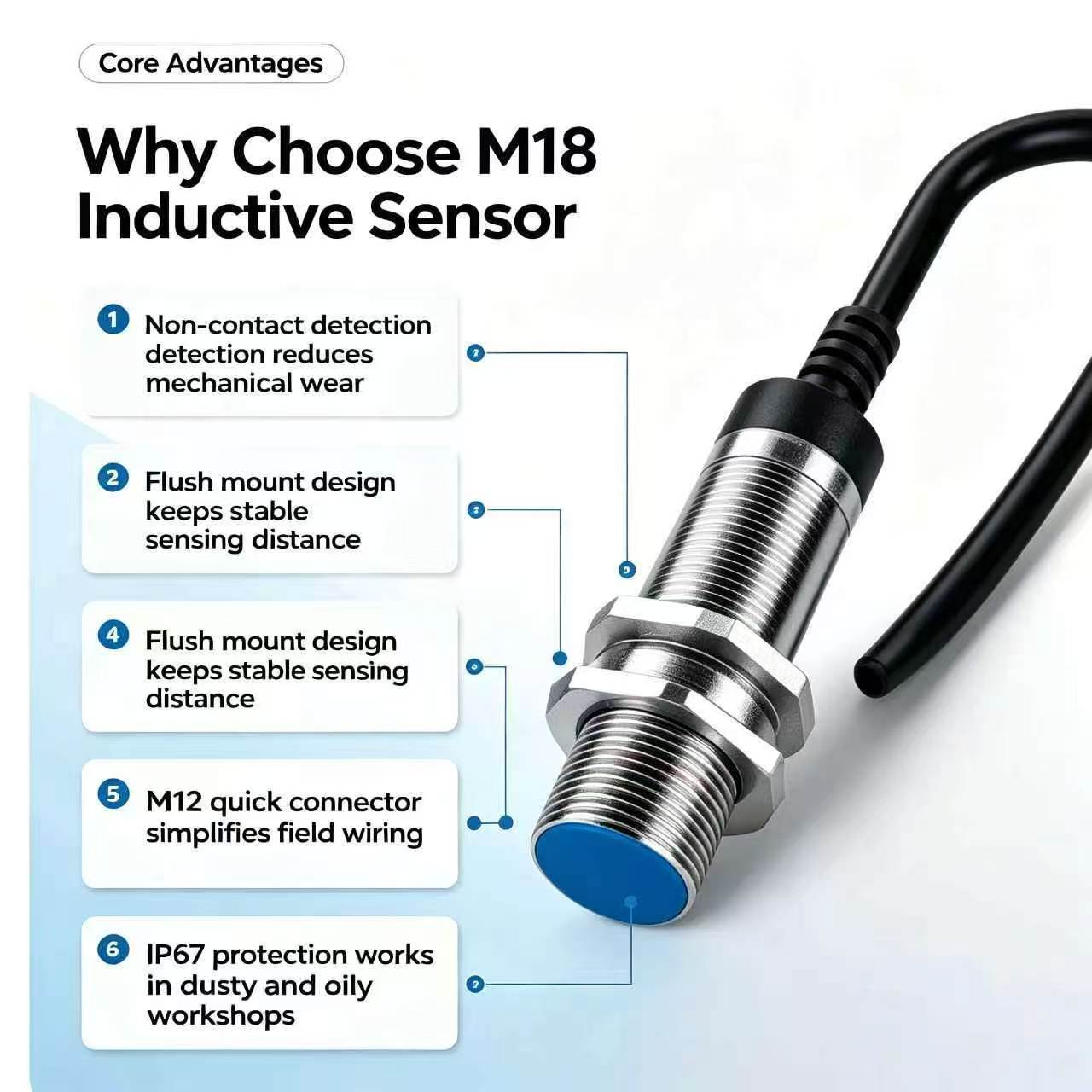

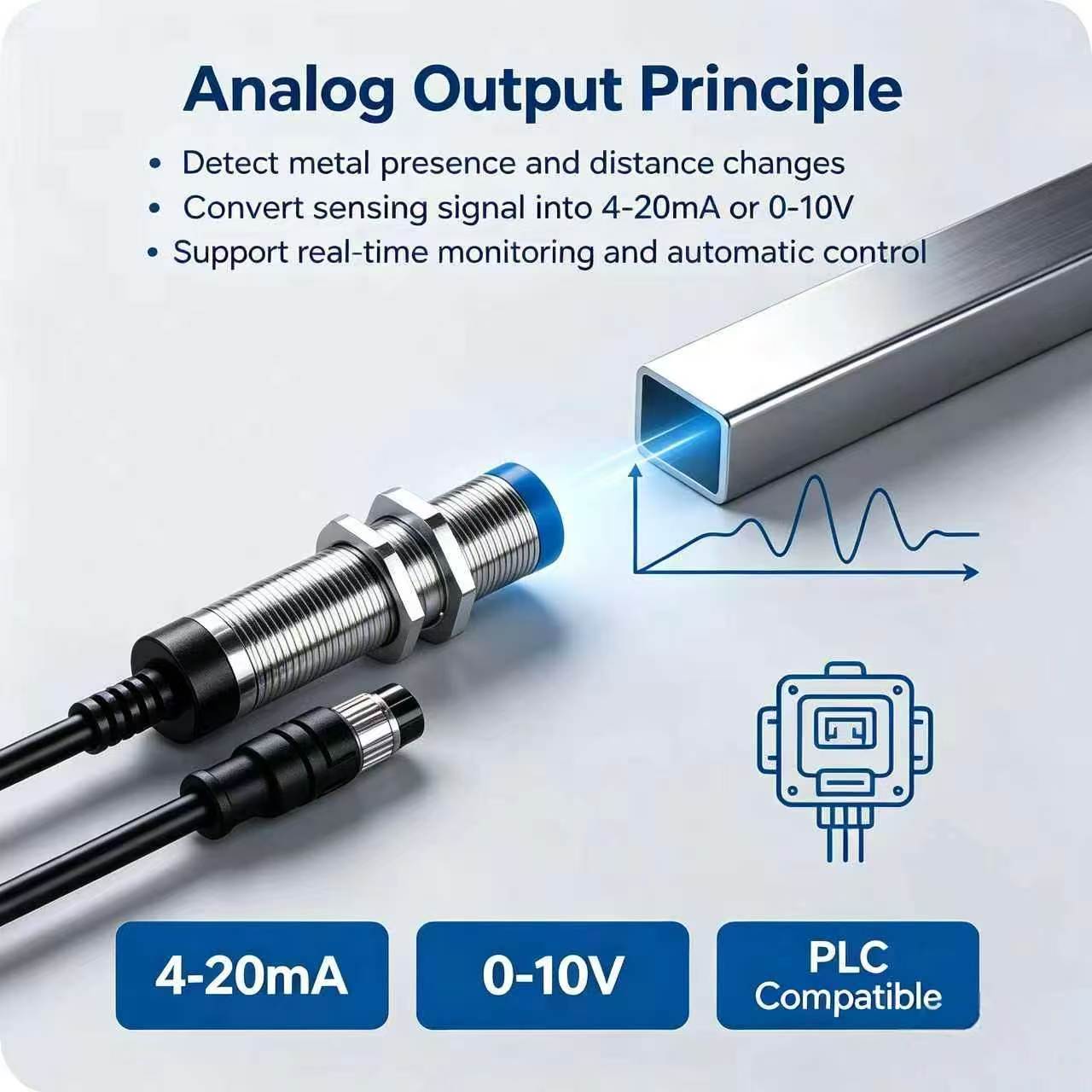

M18 Flush Analog proximity sensor

Inductive sensor, detecting metal objects, detection distance of 5mm

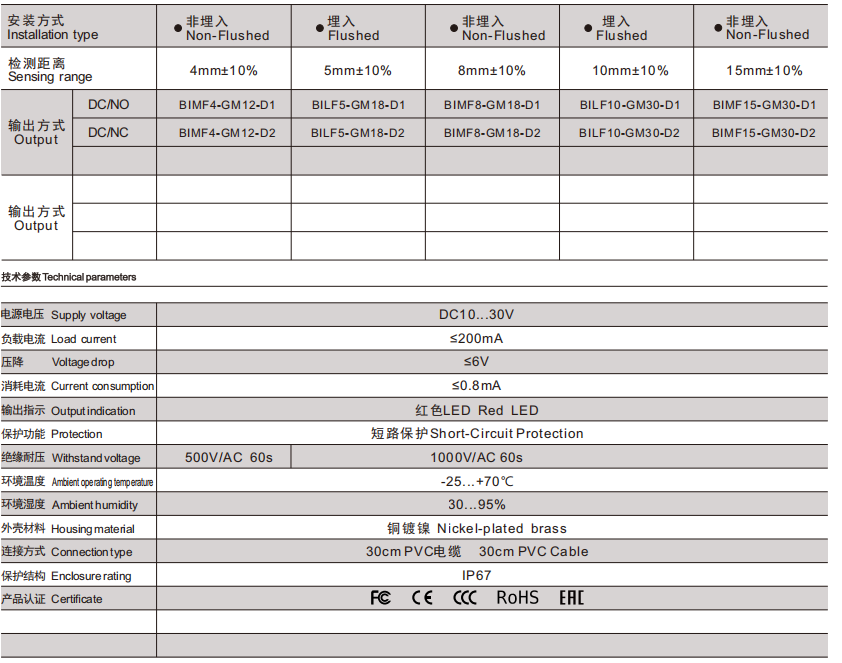

rofile data			M18*1mm

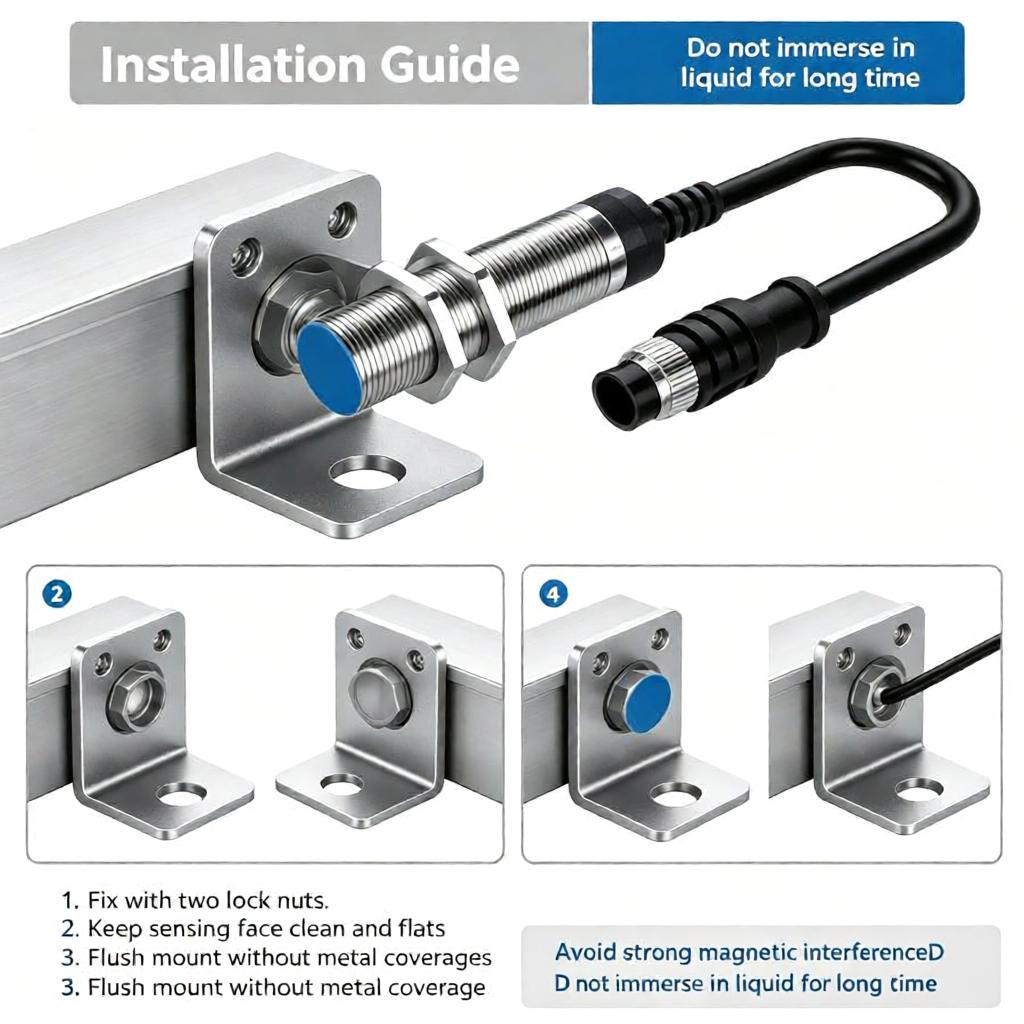

Installation method			Flushed
Detection distance			5mm
Reliable detection distance			0-4.6mm

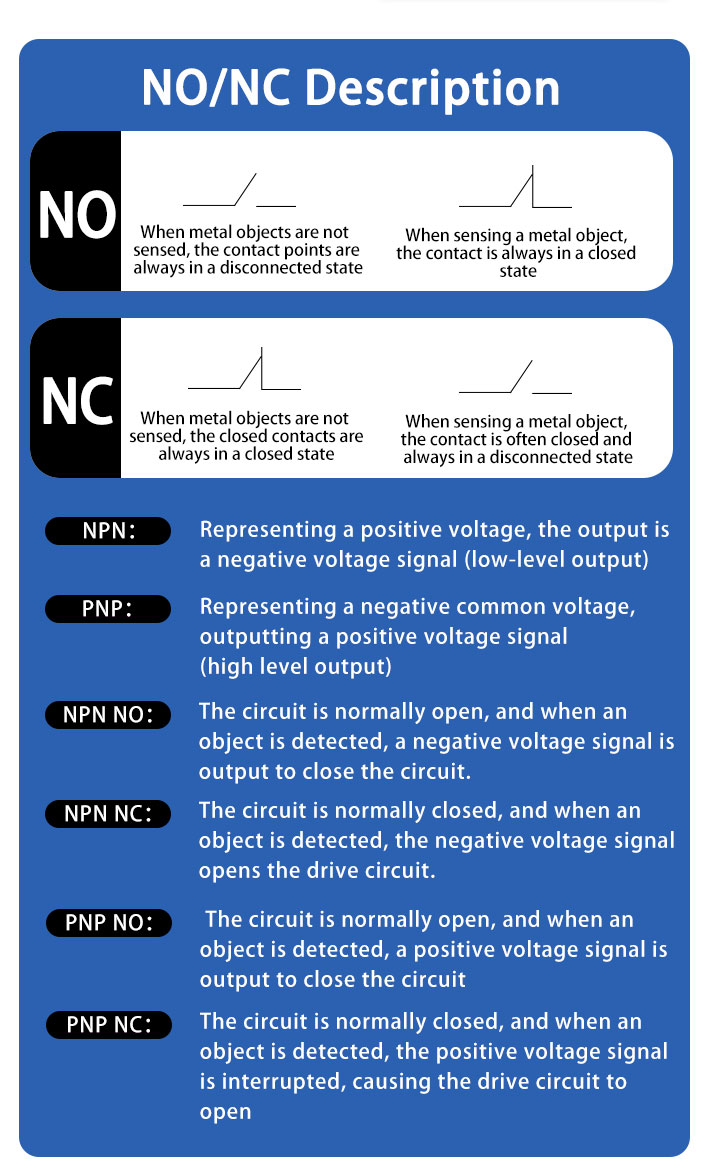

DC 3- wire / DC 4-wire	NPN	NO	BILF5-GM18-N1
		NC	BILF5-GM18-N2
		NO+NC	BILF5-GM18-N3
	PNP	NO	BILF5-GM18-P1
		NC	BILF5-GM18-P2
		NO+NC	BILF5-GM18-P3
DC 2 wire		NO	BILF5-GM18-D1
DC 2 wire		NC	BILF5-GM18-D2
AC 2-wire		NO	BILF5-GM18-A1
AC 2-wire		NC	BILF5-GM18-A2
Supply voltage			DC 3-wire：DC10-30V
			DC 2-wire：DC10-30V
			AC 2-wire：AC20-250V
Voltage drop			DC 3-wire：<1.5V
			DC 2-wire：<6V
			AC 2-wire: <8V
load current			DC 3-wire：<200mA
			DC 2-wire：<200mA
			AC 2-wire：>300mA
Current consumption			DC 3-wire：<10mA
			DC 2-wire：<0.8mA
			AC 2-wire：<2.5V
Leakage current			DC 3-wire：<0.01mA
			DC 2-wire：<0.8mA
			AC 2-wire：<2.5V
Insulation voltage			DC 3-wire：1000V/AC 60S
			DC 2-wire：1000V/AC 60S
			AC 2-wire：2000V/AC 60S
switching frequency			DC 3-wire：1000Hz
			DC 2-wire：800Hz
			AC 2-wire：25Hz
Short circuit protection/reverse connection protection			DC 3-wire：have/have
			DC 2-wire：have/have
			AC 2-wire：
indicator light			Red LED
Degree of protection			Ip67
Shell material			Nickel Plated Brass
Test surface material			PBT

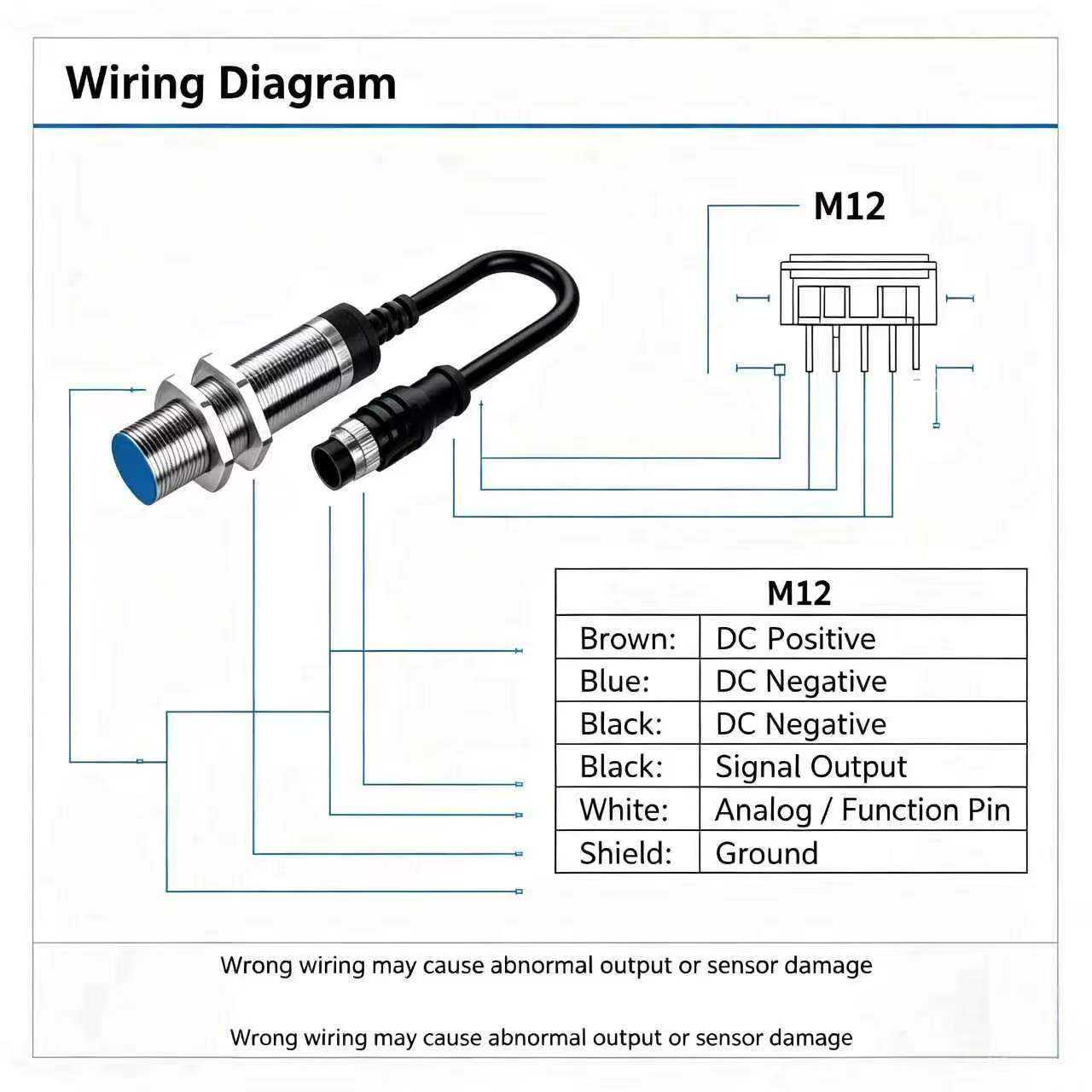

Connection mode			30cm PVC cable with M12 connector
