M18 Flush High temperature resistant proximity sensor
High temperature resistant sensor,Max.120℃，Sensing Range 5mm
- Overview
- Related Products
| rofile data | M18*1mm | ||
| Installation method | Flushed | ||
| Detection distance | 5mm±10% | ||
| Reliable detection distance | 0-4.6mm | ||
| DC 3- wire | NPN | NO | BGLN5-82-BH18-N1/S120 |
| NC | BGLN5-82-BH18-N2/S120 | ||
| PNP | NO | BGLN5-82-BH18-P1/S120 | |
| NC | BGLN5-82-BH18-P2/S120 | ||
| DC 2 wire | NO | BGLN5-82-BH18-D1/S120 | |
| NC | BGLN5-82-BH18-D2/S120 | ||

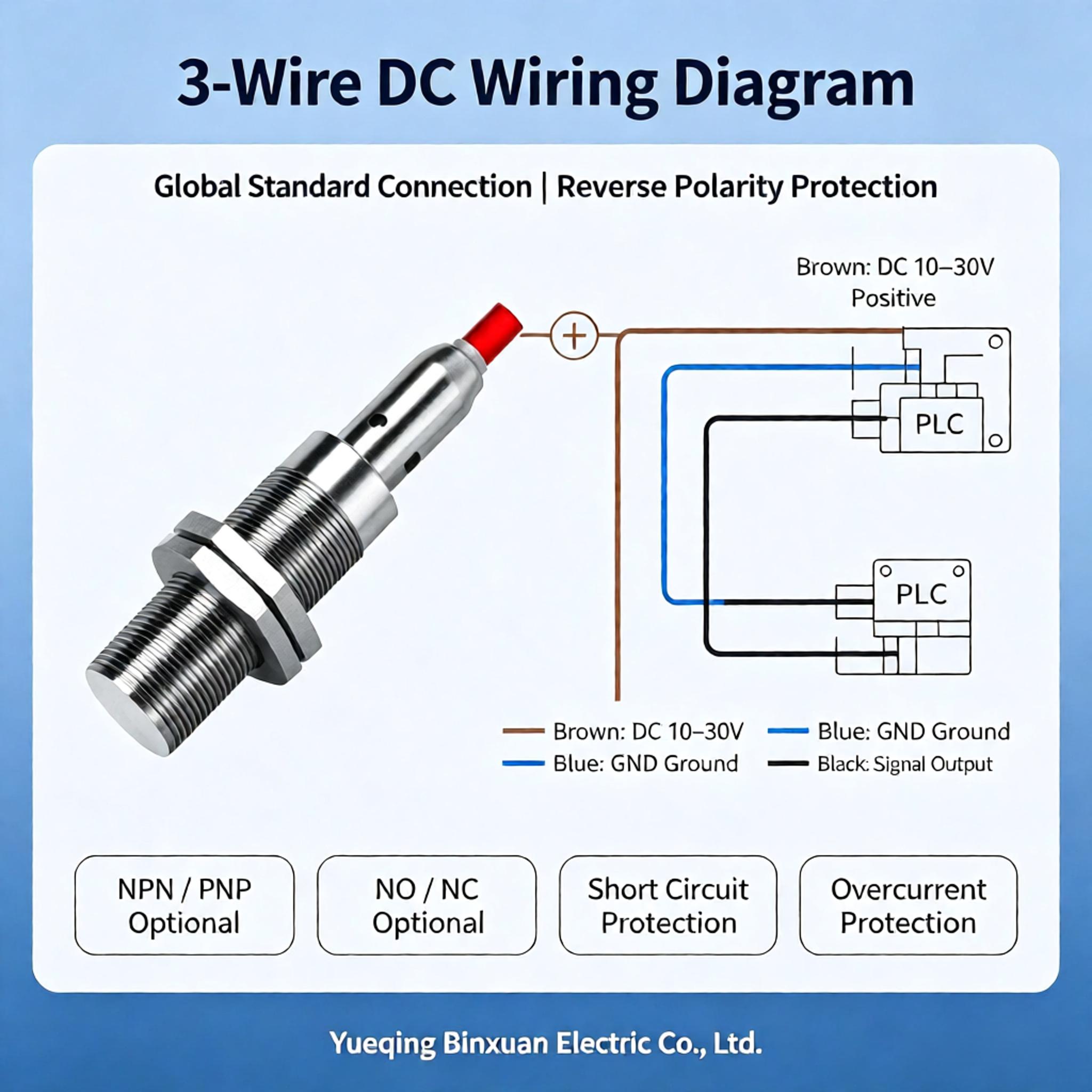

| Supply voltage | DC 3-wire：DC10-30V | ||
| DC 2-wire：DC10-30V | |||
| Voltage drop | DC 3-wire：<1.5V | ||
| DC 2-wire：<6V | |||
| load current | DC 3-wire：<200mA | ||
| DC 2-wire：<200mA | |||
| Current consumption | DC 3-wire：<10mA | ||
| DC 2-wire：<0.8mA | |||
| Leakage current | DC 3-wire：<0.01mA | ||
| DC 2-wire：<0.8mA | |||
| Insulation voltage | DC 3-wire：1000V/AC 60S | ||
| DC 2-wire：1000V/AC 60S | |||
| switching frequency | DC 3-wire：1000Hz | ||
| DC 2-wire：800Hz | |||
| Short circuit protection/reverse connection protection | DC 3-wire：have/have | ||
| DC 2-wire：have/have | |||
| Ambient temperature | -20...120°C | ||
| indicator light | Red LED | ||
| Degree of protection | Ip68 | ||
| Shell material | Stainless steel or Teflon | ||
| Test surface material | Teflon | ||
| Connection mode | 2m High temperature resistant silicon cable | ||
