M30 Flush Analog proximity sensor
Analog sensor, detecting metal objects, detection distance of 10mm
- Overview
- Related Products

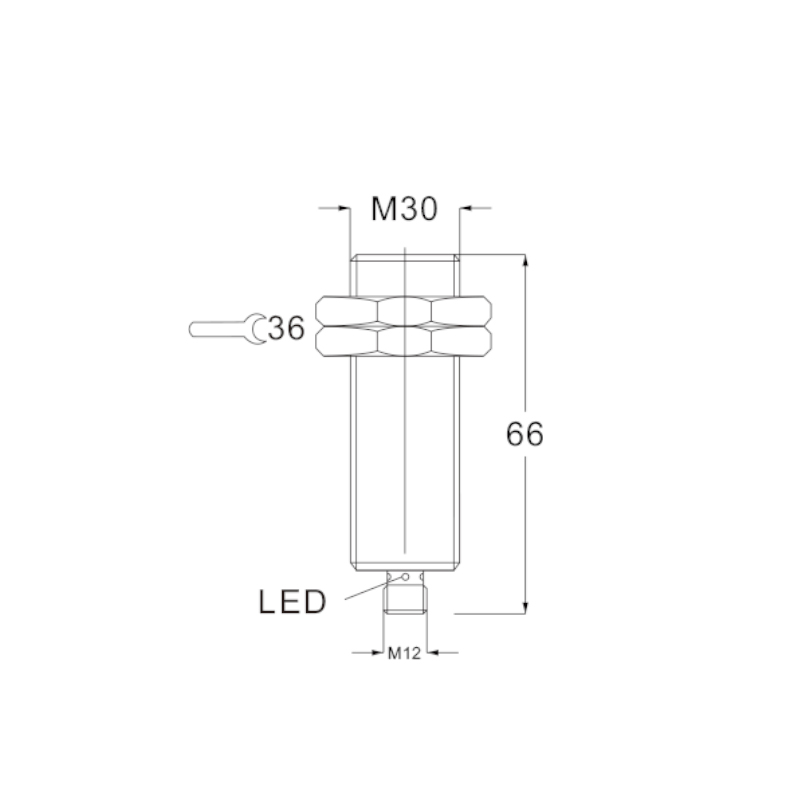

| rofile data | M30*1.5mm | ||
| Installation method | Flushed | ||
| Detection distance | 10mm | ||
| Reliable detection distance | 0-9.6mm | ||
| analog output | 0-10V | BILT10-GM30-U | |
| 4-20mA | BILT10-GM30-I | ||
| analog output | 0-5V | BILT10-GM30-T | |
| 0-20mA | BILT10-GM30-Y | ||
| Supply voltage | Voltage Output：DC10-30V | ||
| Current Output：DC10-30V | |||
| Linearity | Voltage Output：5% | ||
| Current Output：5% | |||
| Repeatability | Voltage Output：3% | ||
| Current Output：3% | |||
| Load | Voltage Output：RL ≤ 470 Ω | ||
| Current Output：RL ≥ 4.7KΩ | |||
| Insulation voltage | Voltage Output：1000V/AC 60S | ||
| Current Output：1000V/AC 60S | |||
| Short circuit protection/reverse connection protection | Voltage Output：have/have | ||
| Current Output：have/have | |||
| indicator light | Red LED | ||
| Degree of protection | Ip67 | ||
| Shell material | Nickel Plated Brass | ||
| Test surface material | PBT | ||
| Connection mode | M12 Connector | ||
