M50 Non-Flush High temperature resistant proximity sensor
High temperature resistant sensor,Max.120℃，Sensing Range 25mm
- Overview
- Related Products

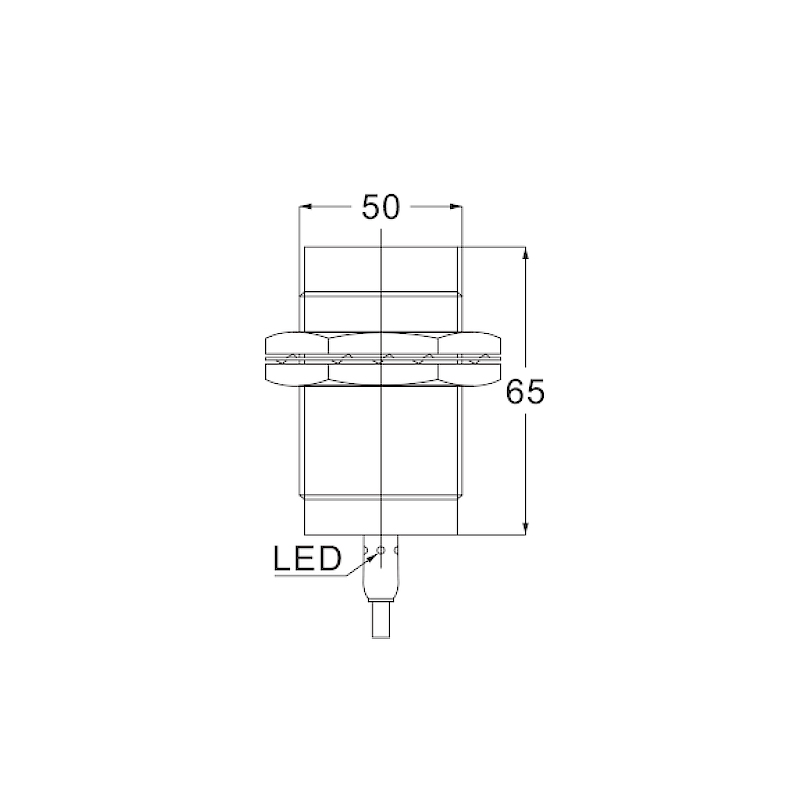

| rofile data | M50*1.5mm | ||
| Installation method | Non-Flushed | ||
| Detection distance | 25mm±10% | ||
| Reliable detection distance | 0-24.6mm | ||

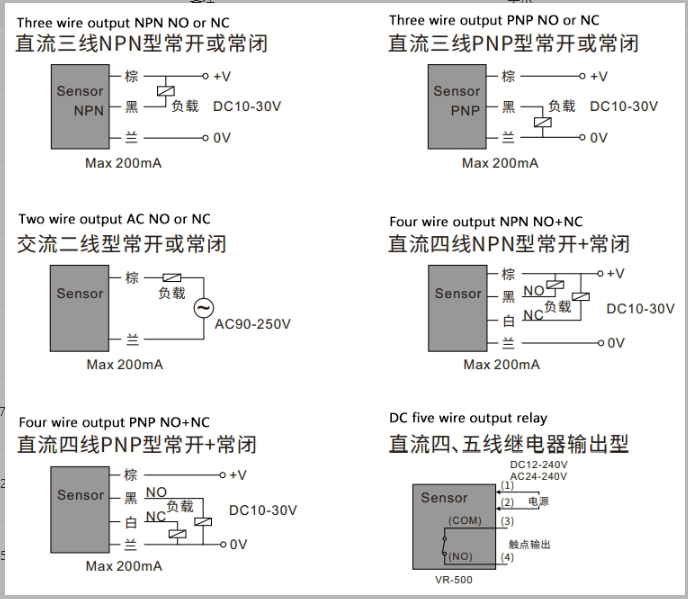

| DC 3- wire | NPN | NO | BGMN25-65BH50-N1/S120 |
| NC | BGMN25-65BH50-N2/S120 | ||
| PNP | NO | BGMN25-65BH50-P1/S120 | |
| NC | BGMN25-65BH50-P2/S120 | ||
| DC 2 wire | NO | BGMN25-65BH50-D1/S120 | |
| NC | BGMN25-65BH50-D2/S120 | ||
| Supply voltage | DC 3-wire：DC10-30V | ||
| DC 2-wire：DC10-30V | |||
| Voltage drop | DC 3-wire：<1.5V | ||
| DC 2-wire：<6V | |||
| load current | DC 3-wire：<200mA | ||
| DC 2-wire：<200mA | |||
| Current consumption | DC 3-wire：<10mA | ||
| DC 2-wire：<0.8mA | |||
| Leakage current | DC 3-wire：<0.01mA | ||
| DC 2-wire：<0.8mA | |||
| Insulation voltage | DC 3-wire：1000V/AC 60S | ||
| DC 2-wire：1000V/AC 60S | |||
| switching frequency | DC 3-wire：300Hz | ||
| DC 2-wire：200Hz | |||
| Short circuit protection/reverse connection protection | DC 3-wire：have/have | ||
| DC 2-wire：have/have | |||
| Ambient temperature | -20...120°C | ||
| indicator light | Red LED | ||
| Degree of protection | Ip68 | ||
| Shell material | Stainless steel or Teflon | ||
| Test surface material | Teflon | ||
| Connection mode | 2m High temperature resistant silicon cable | ||
