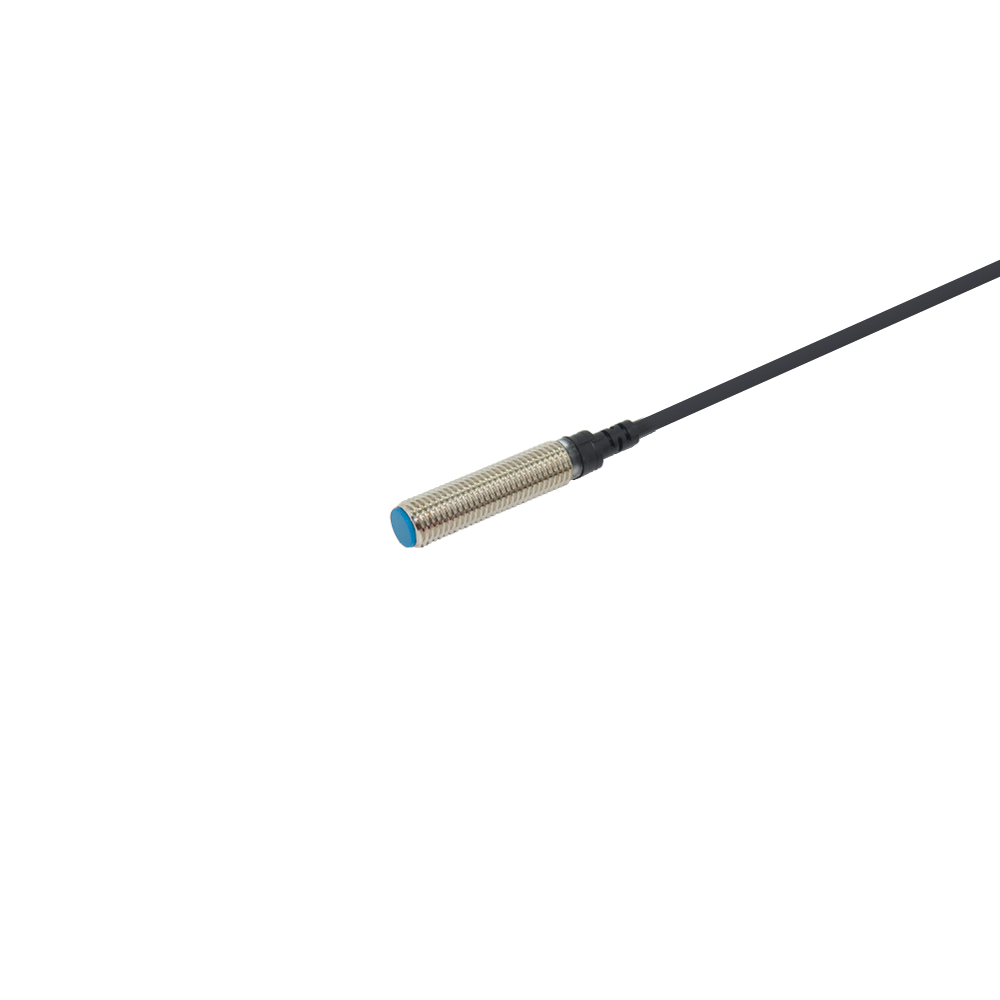

M8 flush Inductive proximity sensor

Inductive sensor, detecting metal objects, detection distance of 1.5mm

rofile data			M8*1mm
Installation method			Flushed
Detection distance			1.5mm±10%
Reliable detection distance			0-1.1mm
DC 3- wire	NPN	NO	BILN1.5-GM8-N1
		NC	BILN1.5-GM8-N2
	PNP	NO	BILN1.5-GM8-P1
		NC	BILN1.5-GM8-P2
DC 2 wire		NO	BILN1.5-GM8-D1
		NC	BILN1.5-GM8-D2
AC 2-wire		NO	BILN1.5-GM8-D2
		NC	BILN1.5-GM8-A2
Supply voltage			DC 3-wire：DC10-30V
			DC 2-wire：DC10-30V
			AC 2-wire：AC20-250V
Voltage drop			DC 3-wire：<1.5V
			DC 2-wire：<6V
			AC 2-wire: <8V
load current			DC 3-wire：<200mA
			DC 2-wire：<200mA
			AC 2-wire：>300mA
Current consumption			DC 3-wire：<10mA
			DC 2-wire：<0.8mA
			AC 2-wire：<2.5V
Leakage current			DC 3-wire：<0.01mA
			DC 2-wire：<0.8mA
			AC 2-wire：<2.5V
Insulation voltage			DC 3-wire：500V/AC 60S
			DC 2-wire：500V/AC 60S
			AC 2-wire：2000V/AC 60S
switching frequency			DC 3-wire：1500Hz
			DC 2-wire：1000Hz
			AC 2-wire：25Hz
Short circuit protection/reverse connection protection			DC 3-wire：have/have
			DC 2-wire：have/have
			AC 2-wire：
indicator light			Red LED
Degree of protection			Ip67
Shell material			Nickel Plated Brass
Test surface material			PBT
Connection mode			2m PVC cable
